Diffuse-reflective photoelectric sensor with a 100mm sensing distance and 1ms response time. Features NPN output configuration with Dark-On operation and 80mA maximum output current. Operates on 12-24V DC supply voltage, with a maximum supply voltage of 26.4V. Constructed from plastic with a 2m lead length and screw mount. Rated IP65 for environmental protection, with an operating temperature range of -25°C to 55°C.
MountingScrew
Quick Jump:
Technical Specifications
Omron E3S-DS10E4 technical specifications.
General
Height
27.3mm
Lead Length
2m
Length
50mm
Material
Plastic
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Output Current
80mA
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
12V
Max Supply Voltage
26.4V
Min Supply Voltage
10.8V
Mount
Screw
Operating Supply Voltage
24V
Output Configuration
Dark-On
Output Current
80mA
Output Type
NPN
Package Quantity
1
Ratings
IP65
Reach SVHC Compliant
Unknown
Response Time
1ms
RoHS Compliant
No
Sensing Distance
100mm
Series
E3S
Width
31.4mm
Compliance
RoHS
Not Compliant
Datasheet
Omron E3S-DS10E4 Datasheet
Download the complete datasheet for Omron E3S-DS10E4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

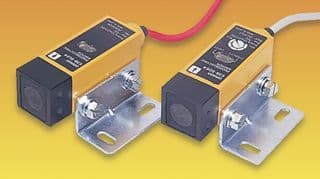

Product Images
