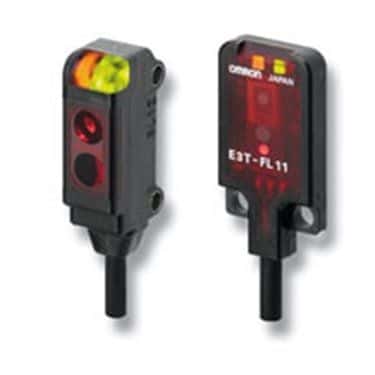

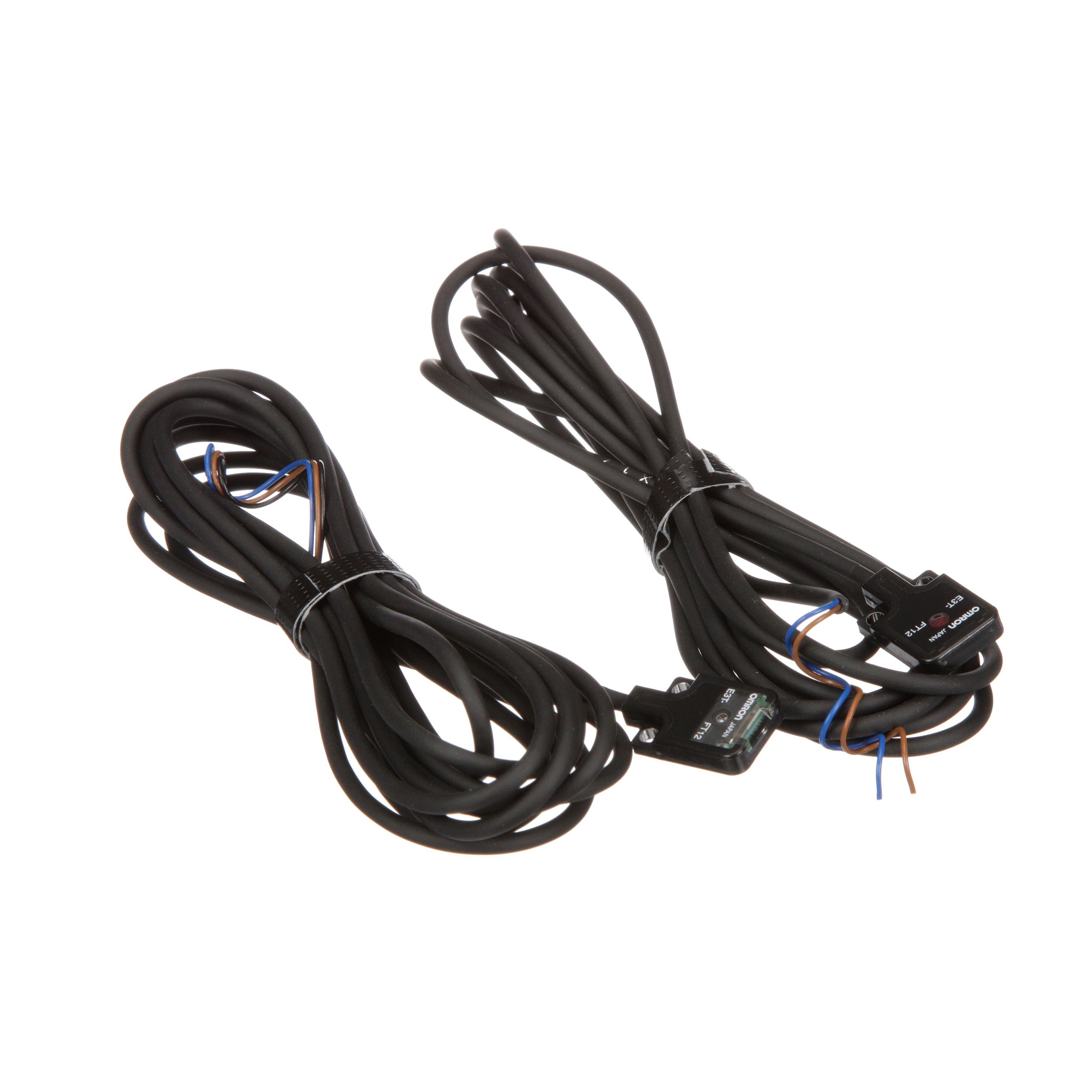

Through-beam photoelectric sensor with NPN open-collector output. Features a 1ms response time and a sensing distance of 19.685 inches. Operates within a supply voltage range of 10.8V to 26.4V, with a nominal 24V. Rated IP67 for environmental protection and operates between -25°C and 55°C. Mounting options include brackets and screw, with cable termination. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3T-FT12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3T-FT12 technical specifications.
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Brackets, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN - Open Collector |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 19.685inch |
| Series | E3T |
| Termination | Cable |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E3T-FT12 to view detailed technical specifications.
