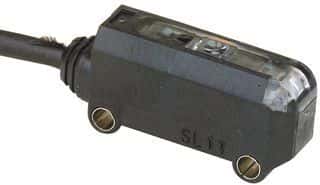

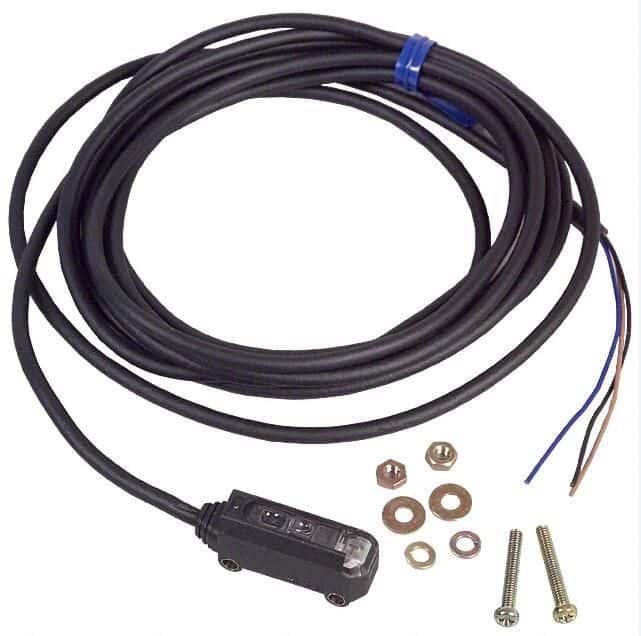

Photoelectric sensor, limited reflective, light ON, NPN output. Features a 15mm sensing distance and 1ms response time. Operates with DC supply voltages from 10.8V to 26.4V, with a maximum output current of 50mA. Rated IP67 for environmental protection and offers a temperature range of -25°C to 55°C. Mounting options include brackets and screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3T-SL11 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3T-SL11 technical specifications.
| Lead Free | Contains Lead |
| Length | 2mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Max Voltage Rating (DC) | 24V |
| Mount | Brackets, Screw |
| Output Configuration | NPN - Open Collector |
| Output Current | 50mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 15mm |
| Series | E3T |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E3T-SL11 to view detailed technical specifications.
