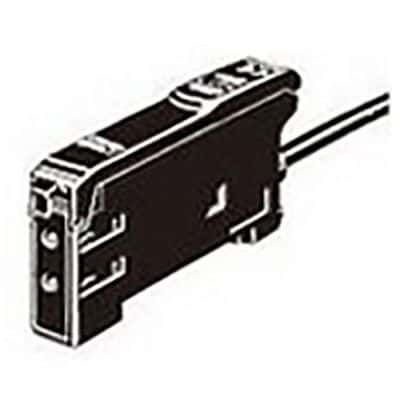

The Omron E3X-DAB11-N is a photoelectric sensor with an NPN output, designed for operation at 24V with a maximum supply current of 40mA. It has a power consumption of 960mW and is rated for a maximum operating temperature of 55°C. The sensor is mounted on a DIN rail and is compliant with IP50 ratings. It is packaged in bulk and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3X-DAB11-N datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3X-DAB11-N technical specifications.
| Depth | 10mm |
| Length | 70mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | DIN Rail |
| Operating Supply Current | 40mA |
| Operating Supply Voltage | 24V |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Power Consumption | 960mW |
| Ratings | IP50 |
| RoHS Compliant | Yes |
| Series | E3X-DA-N |
| Width | 32mm |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E3X-DAB11-N to view detailed technical specifications.
