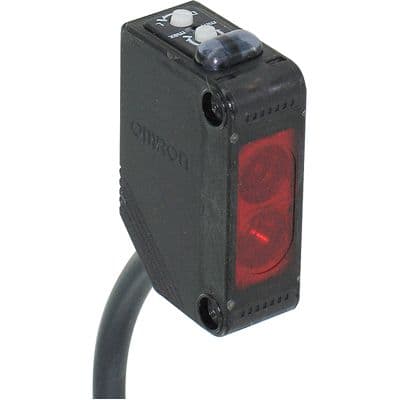

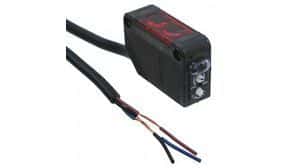

The Omron E3Z-D81 is a general purpose amplifier with a PNP output configuration and a maximum operating temperature of 55°C. It has a sensing distance of 100mm and a response time of 1ms. The amplifier is rated for an operating supply voltage of 24V and a maximum supply voltage of 26.4V. It is designed for use in environments with high humidity and is compliant with the RoHS directive.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-D81 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3Z-D81 technical specifications.
| Body Material | PBT |
| Height | 33.2mm |
| Length | 20mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Brackets, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 100mm |
| Series | E3Z |
| Termination | Cable |
| Width | 10.8mm |
| RoHS | Not Compliant |
