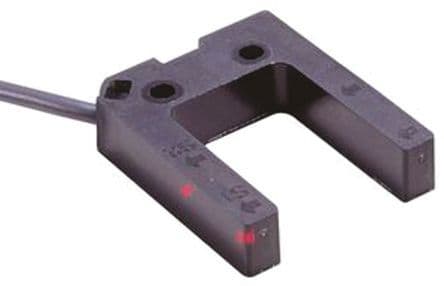

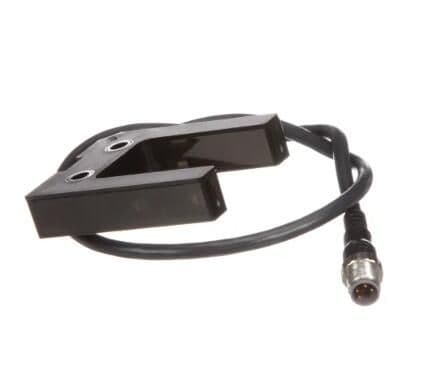

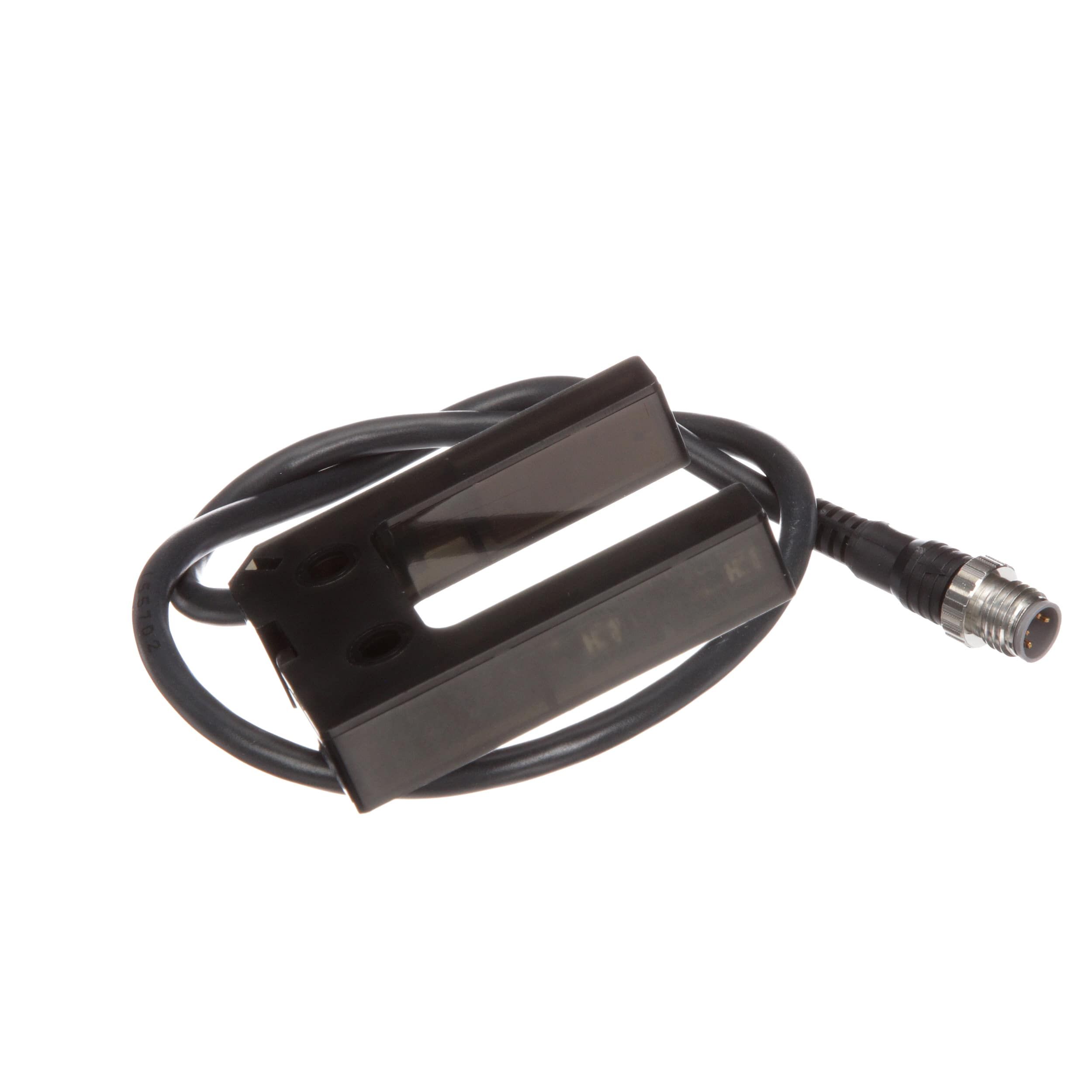

The Omron E3Z-G62-M3J is a general purpose relay with an NPN output configuration and dark-on output type. It operates within a temperature range of -25°C to 55°C and is rated for a maximum supply voltage of 24V DC. The relay is mounted on a DIN rail and features a response time of 1ms. It is compliant with RoHS regulations and has an IP64 and IP67 rating for environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-G62-M3J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3Z-G62-M3J technical specifications.
| Height | 11mm |
| Length | 50mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | DIN Rail |
| Output Configuration | Dark-On |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP64, IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 25mm |
| Series | E3Z-G |
| Termination | Connector |
| Width | 40mm |
| RoHS | Compliant |
