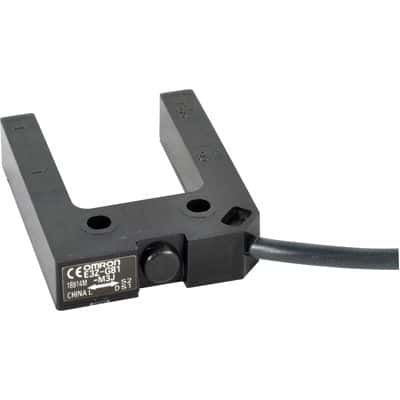

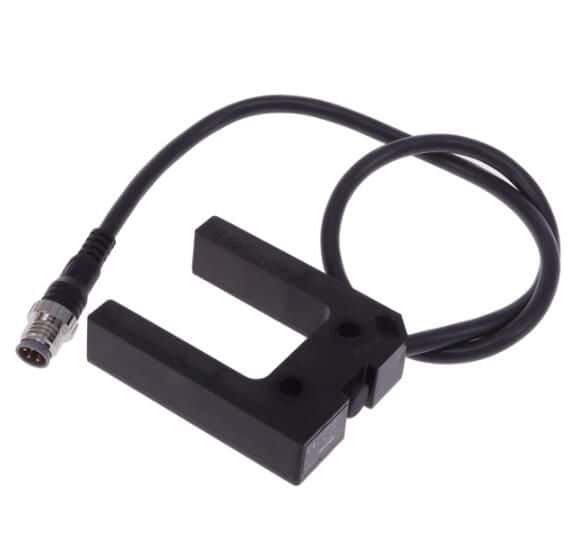

The Omron E3Z-G81-M3J is a PNP dark-on output electromechanical component with a response time of 1ms. It operates within a temperature range of -25°C to 55°C and is rated for use with supply voltages between 12V and 24V. The component is designed for mounting via brackets or panel and features a sensing distance of 0.984inch. It is compliant with RoHS regulations and is available in a package quantity of 1.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-G81-M3J datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | PBT |
| Height | 11mm |
| Length | 50mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Brackets, Panel |
| Output Configuration | Dark-On |
| Output Type | PNP |
| Package Quantity | 1 |
| Ratings | IP64, IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 0.984inch |
| Series | E3Z-G |
| Termination | Connector |
| Width | 40mm |
| RoHS | Compliant |
