NPN photoelectric sensor with a sensing distance of 200mm and a 1ms response time. Features dark-on output configuration, 100mA output current, and PBT body material. Rated IP67 and CE approved, operating between -25°C and 55°C. Mounts via brackets and terminates with a cable. RoHS compliant.
MountingBrackets
Quick Jump:
Technical Specifications
Omron E3Z-LS61 technical specifications.
General
Approvals
CE
Body Material
PBT
Height
31mm
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Mount
Brackets
Output Configuration
Dark-On
Output Current
100mA
Output Type
NPN
Package Quantity
1
Ratings
IP67
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
200mm
Series
E3Z
Termination
Cable
Weight
65g
Compliance
RoHS
Compliant
Datasheet
Omron E3Z-LS61 Datasheet
Download the complete datasheet for Omron E3Z-LS61 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

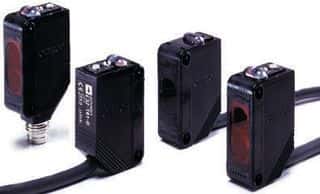

Product Images
