The Omron E3Z-LT86 is a desktop PNP output device with a dark-on configuration, operating within a temperature range of -10°C to 55°C. It is rated for use with a supply voltage between 12V and 24V. The device is packaged in tape and reel format, with a single unit per package, and is compliant with IP67 ratings. The Omron E3Z-LT86 has a response time of 1ms and is RoHS compliant.
MountingDesktop
Quick Jump:
Technical Specifications
Omron E3Z-LT86 technical specifications.
General
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Desktop |
| Output Configuration | Dark-On |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 2362.2inch |
| Series | E3Z |
Compliance
| RoHS | Compliant |
Datasheet
Omron E3Z-LT86 Datasheet
Download the complete datasheet for Omron E3Z-LT86 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

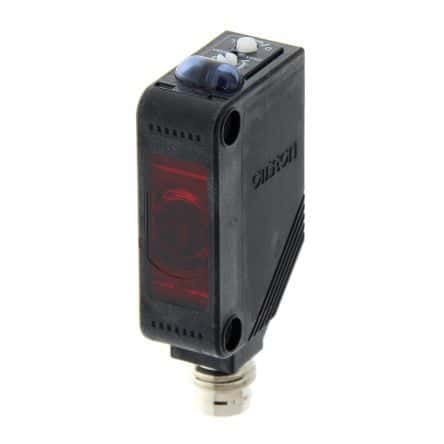

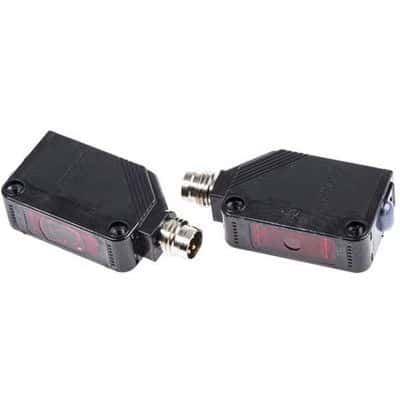

Product Images
