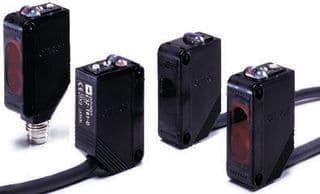

Retro-reflective photoelectric sensor with NPN output, offering Light-ON and Dark-ON configurations. Features a 1ms response time and a sensing distance of 100mm. Operates on 12-24V DC supply voltage with a maximum output current of 100mA. Constructed with PBT body material and rated IP67 for environmental protection. Termination is via cable, and mounting options include brackets and screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-R61 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3Z-R61 technical specifications.
| Approvals | CE, cULus |
| Body Material | PBT |
| Height | 33.2mm |
| Lead Free | Contains Lead |
| Length | 20mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 26.4V |
| Min Supply Voltage | 10.8V |
| Mount | Brackets, Screw |
| Operating Supply Voltage | 24V |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Reach SVHC Compliant | Unknown |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 100mm |
| Series | E3Z |
| Termination | Cable |
| Touchscreen | Infrared (IR) |
| Weight | 2.3oz |
| Width | 10.8mm |
| RoHS | Not Compliant |
Download the complete datasheet for Omron E3Z-R61 to view detailed technical specifications.
