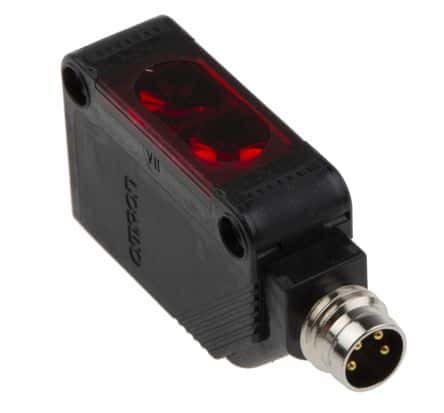

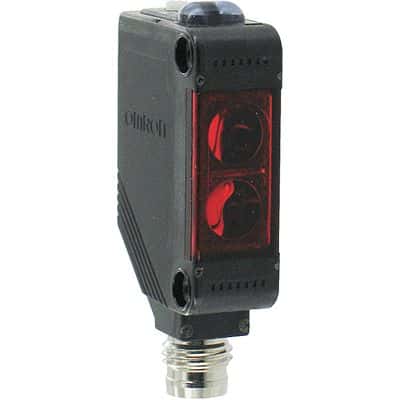

Reflective photoelectric sensor with a 4m sensing distance and PNP output configuration. Features a PBT body, M8 connector termination, and a 1ms response time. Operates within a 12-24V DC supply voltage range and offers a 100mA output current. Rated IP67 and IP69K for robust environmental protection.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-R86 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3Z-R86 technical specifications.
| Body Material | PBT |
| Height | 20mm |
| Length | 43.5mm |
| Material | Polybutylene |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Max Voltage Rating (DC) | 24V |
| Mount | Brackets, Screw |
| Output Configuration | Dark-On |
| Output Current | 100mA |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67, IP69K |
| Reach SVHC Compliant | Unknown |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 4m |
| Sensing Method | Optical |
| Series | E3Z |
| Termination | Connector |
| Width | 10.8mm |
| RoHS | Compliant |
