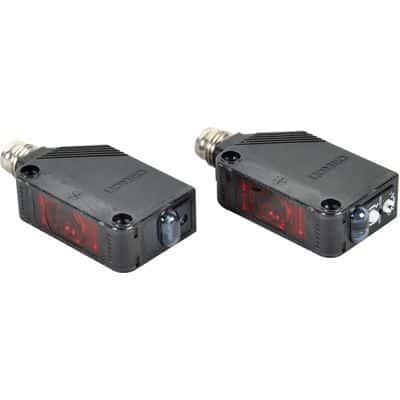

PNP photoelectric proximity sensor with a sensing distance of 1000cm. Features Light ON/Dark ON operation and a response time of 1ms. Operates with a DC supply voltage range of 12V to 24V. Constructed with PBT body material and rated IP67 for environmental protection. Mounting options include brackets and screw.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3Z-T86A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3Z-T86A technical specifications.
| Body Material | PBT |
| Height | 20mm |
| Length | 43.5mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 12V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 12V |
| Mount | Brackets, Screw |
| Output Configuration | PNP |
| Output Type | PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 157.48inch |
| Series | E3Z |
| Termination | Connector |
| Width | 10.8mm |
| RoHS | Compliant |
