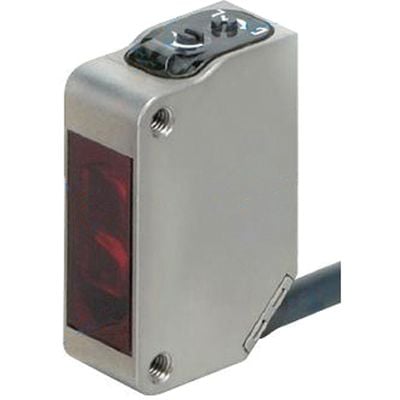

The Omron E3ZM-LS64H2M is a photodetector with a dark-on output configuration and NPN output type, rated for operation between -25°C and 55°C. It can withstand supply voltages between 10V and 30V. The device is mounted using brackets and screws, and is rated for IP67. It has a response time of 1ms and a sensing distance of 200mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron E3ZM-LS64H2M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron E3ZM-LS64H2M technical specifications.
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 10V |
| Mount | Brackets, Screw |
| Output Configuration | Dark-On |
| Output Type | NPN |
| Package Quantity | 1 |
| Ratings | IP67 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 200mm |
| Series | E3ZM |
| Termination | Cable |
| RoHS | Compliant |
Download the complete datasheet for Omron E3ZM-LS64H2M to view detailed technical specifications.
