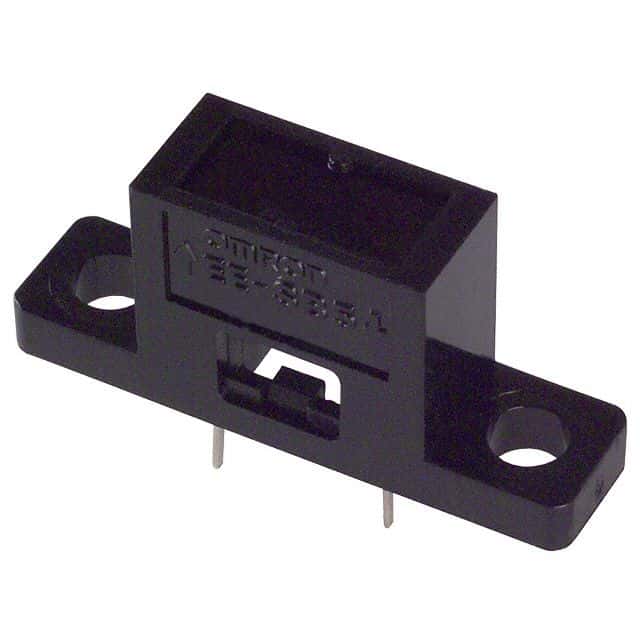

Reflective photointerrupter featuring a phototransistor output. This 1-channel, 1-element optical sensor operates with a 940nm infrared wavelength and a 5mm sensing distance. Key electrical specifications include a 30V collector-emitter breakdown voltage, 50mA forward current, and 30mA maximum input current. The component offers a 30µs response time and a 100mW power dissipation, with a 30V output voltage. Constructed from ABS, it supports solder, panel, and screw mounting and is UL approved.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SB5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron EE-SB5 technical specifications.
| Approvals | UL |
| Body Material | ABS |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 30us |
| Forward Current | 50mA |
| Input Current | 30mA |
| Lead Free | Lead Free |
| Max Collector Current | 20mA |
| Max Input Current | 30mA |
| Max Operating Temperature | 80°C |
| Min Operating Temperature | -25°C |
| Mount | Solder, Panel, Screw |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 24V |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | Unknown |
| Response Time | 30us |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | No |
| Sensing Distance | 5mm |
| Termination | Solder |
| Touchscreen | Infrared (IR) |
| Wavelength | 940nm |
| RoHS | Not Compliant |
