EE-SG3

Datasheet

Photointerrupter Transmissive 3.6mm 30V 50mA Phototransistor

Omron

EE-SG3

Name: EE-SG3 Omron
Brand: Omron
SKU: EE-SG3
Price: 14.7 USD
Availability: InStock

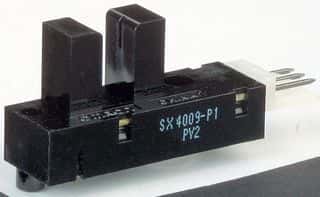

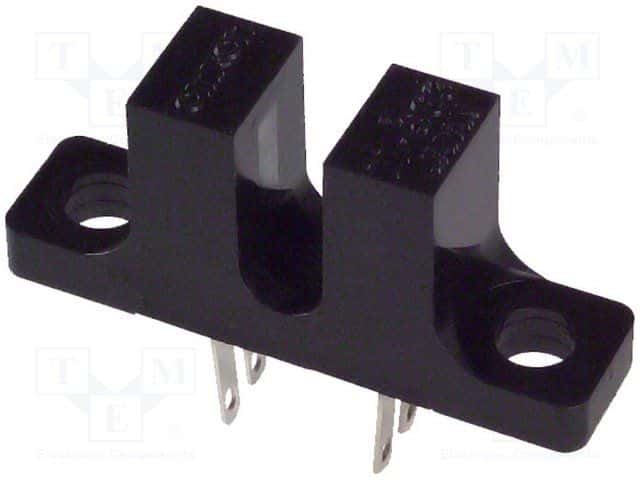

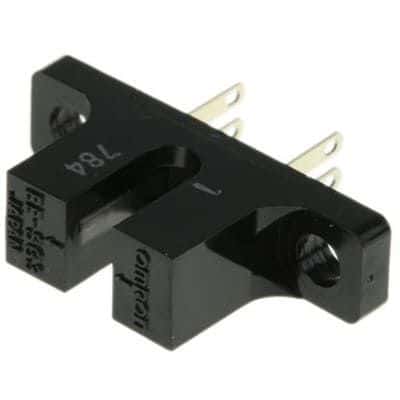

Photointerrupter Transmissive 3.6mm 30V 50mA Phototransistor

Transmissive photointerrupter featuring a phototransistor output. Offers a 3.6mm sensing distance with a 940nm wavelength. Key electrical specifications include a 30V collector-emitter breakdown voltage, 50mA forward current, and 100mW maximum power dissipation. Operating temperature range is -25°C to 85°C. Mounting options include solder and through-hole with a 4-pin termination.

MountingSolder, Through Hole, Panel

Power100mW

Quick Jump:

Pricing & Availability

Distributor	Package Type	Min Qty	1+	3+	5+	6+	Stock	Action
Quest	-	3	-	14.7	-	14	30 In Stock	View
TME	pcs	1	5.84	-	5.51	-	10 In Stock	View

Chat with Datasheet

Technical Specifications

Omron EE-SG3 technical specifications.

General

Collector Emitter Breakdown Voltage	30V
Collector Emitter Voltage (VCEO)	30V
Collector-emitter Voltage-Max	30V
Fall Time	4000ns
Forward Current	50mA
Height	11.7mm
Input Current	30mA
Lead Free	Lead Free
Length	25.4mm
Max Collector Current	20mA
Max Input Current	30mA
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Max Power Dissipation	100mW
Mount	Solder, Through Hole, Panel
Number of Channels	1
Number of Elements	1
Output Configuration	Phototransistor
Output Type	Phototransistor
Output Voltage	30V
Package Quantity	50
Packaging	Bulk
Power Dissipation	100mW
Reach SVHC Compliant	Unknown
Response Time	4us
Reverse Breakdown Voltage	4V
Reverse Voltage (DC)	4V
RoHS Compliant	Yes
Sensing Distance	3.6mm
Termination	Solder
Wavelength	940nm
Width	6.35mm
