Transmissive photointerrupter featuring a phototransistor output. This component offers a 3.6mm sensing distance and operates with a 940nm wavelength. Key electrical specifications include a 30V collector-emitter breakdown voltage, 50mA forward current, and 20mA maximum collector current. Designed for through-hole PCB mounting with solder termination, it boasts a 4µs response time and 100mW power dissipation. Operating temperature range is -25°C to 85°C.
MountingThrough Hole, PCB
Power100mW
Quick Jump:
Technical Specifications
Omron EE-SG3-B technical specifications.
General
Collector Emitter Breakdown Voltage
30V
Collector Emitter Voltage (VCEO)
30V
Collector-emitter Voltage-Max
30V
Fall Time
4000ns
Forward Current
50mA
Height
11.7mm
Input Current
30mA
Lead Free
Lead Free
Length
25.4mm
Max Collector Current
20mA
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Power Dissipation
100mW
Mount
Through Hole, PCB
Number of Channels
1
Number of Elements
1
Output Configuration
Phototransistor
Packaging
Bulk
Power Dissipation
100mW
Reach SVHC Compliant
Unknown
Response Time
4us
Reverse Breakdown Voltage
4V
Reverse Voltage (DC)
4V
RoHS Compliant
Yes
Sensing Distance
3.6mm
Termination
Solder
Wavelength
940nm
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SG3-B Datasheet
Download the complete datasheet for Omron EE-SG3-B to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

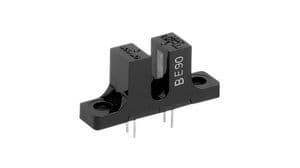

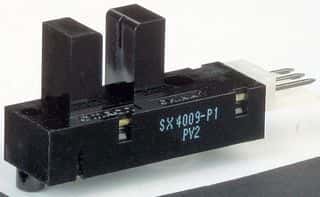

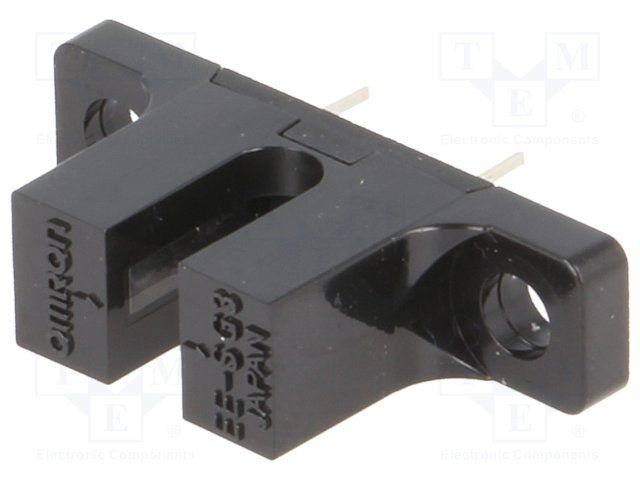

Product Images
