Technical Specifications
Omron EE-SPX304-W2A technical specifications.
General
Height
21.2mm
Lead Free
Contains Lead
Lead Length
1m
Length
15.5mm
Max Operating Temperature
55°C
Min Operating Temperature
-10°C
Max Supply Voltage
24V
Min Supply Voltage
5V
Mount
Chassis Mount, Wire, Screw
Output Configuration
NPN - Open Collector
Output Type
Phototransistor, NPN
Package Quantity
1
Ratings
IP50
RoHS Compliant
No
Sensing Distance
3.6mm
Sensing Method
Optical
Termination
Cable
Touchscreen
Infrared (IR)
Wavelength
940nm
Width
13mm
Compliance
RoHS
Not Compliant
Datasheet
Omron EE-SPX304-W2A Datasheet
Download the complete datasheet for Omron EE-SPX304-W2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

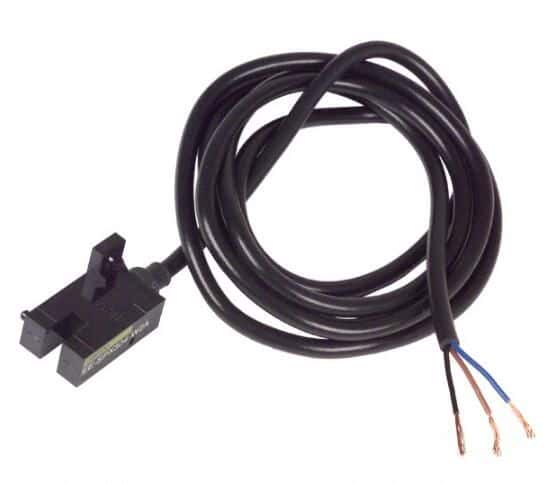

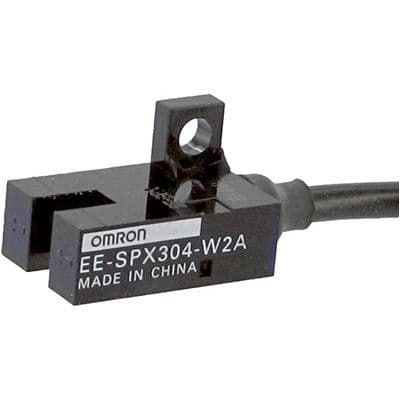

Product Images
