The Omron EE-SPX406-W2A is a phototransistor with an NPN output configuration and open collector output. It operates within a temperature range of -10°C to 55°C and can handle a maximum collector current of 80mA. The device is available in a bulk packaging and is rated for IP50. It has a sensing distance of 0.142inch and uses an optical sensing method with a wavelength of 940nm.
MountingChassis Mount, Wire, Screw
Quick Jump:
Technical Specifications
Omron EE-SPX406-W2A technical specifications.
General
| Forward Current | 15mA |
| Height | 7.4mm |
| Lead Free | Contains Lead |
| Length | 25mm |
| Max Collector Current | 80mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Chassis Mount, Wire, Screw |
| Output Configuration | NPN - Open Collector |
| Output Type | Phototransistor, NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP50 |
| RoHS Compliant | No |
| Sensing Distance | 0.142inch |
| Sensing Method | Optical |
| Wavelength | 940nm |
| Width | 21.2mm |
Compliance
| RoHS | Not Compliant |
Datasheet
Omron EE-SPX406-W2A Datasheet
Download the complete datasheet for Omron EE-SPX406-W2A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

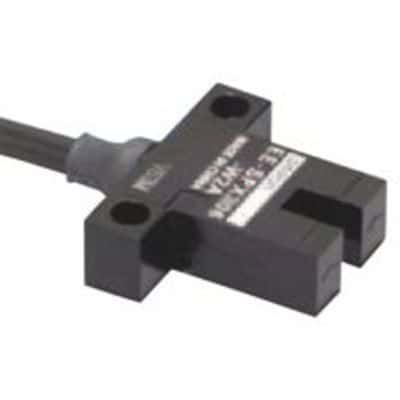

Product Images
