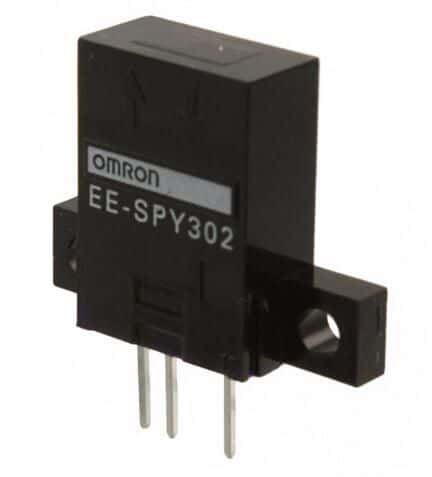

NPN photoelectric sensor with dark-on operation, featuring a 5mm sensing distance and 940nm wavelength. This through-beam/retro-reflective optical sensor utilizes a phototransistor output with an open collector configuration, capable of handling up to 80mA max collector current. It operates from a 3-24V supply voltage with a 15mA input current and a 1V output voltage. The compact component measures 26mm in length, 7mm in width, and 20mm in height, weighing 2.6g, and is designed for through-hole or screw mounting. Rated IP50, it functions within a -10°C to 55°C temperature range.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SPY302 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 20mm |
| Input Current | 15mA |
| Lead Free | Contains Lead |
| Length | 26mm |
| Max Collector Current | 80mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -10°C |
| Mount | Through Hole, Screw |
| Number of Channels | 1 |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN - Open Collector |
| Output Current | 80mA |
| Output Type | Phototransistor |
| Output Voltage | 1V |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP50 |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Termination | Through Hole |
| Wavelength | 940nm |
| Weight | 2.6g |
| Width | 7mm |
| RoHS | Compliant |
