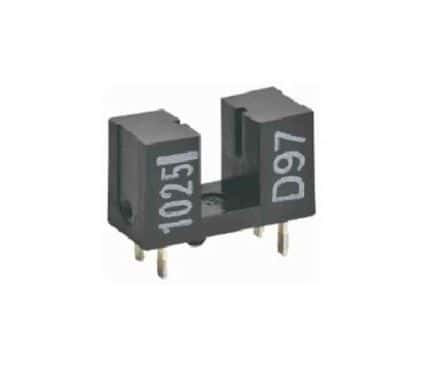

Transmissive photointerrupter with a 2.8mm sensing distance and 940nm wavelength. Features an open collector output configuration with a maximum collector current of 20mA and a 30V collector-emitter voltage. Offers a response time of 4µs and operates within a temperature range of -25°C to 85°C. Mounts via through-hole on PCBs and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX1025 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 4us |
| Forward Current | 50mA |
| Input Current | 30mA |
| Lead Free | Lead Free |
| Max Collector Current | 20mA |
| Max Input Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | Yes |
| Sensing Distance | 2.8mm |
| Termination | PCB |
| DC Rated Voltage | 5V |
| Wavelength | 940nm |
| Width | 500um |
| RoHS | Compliant |
