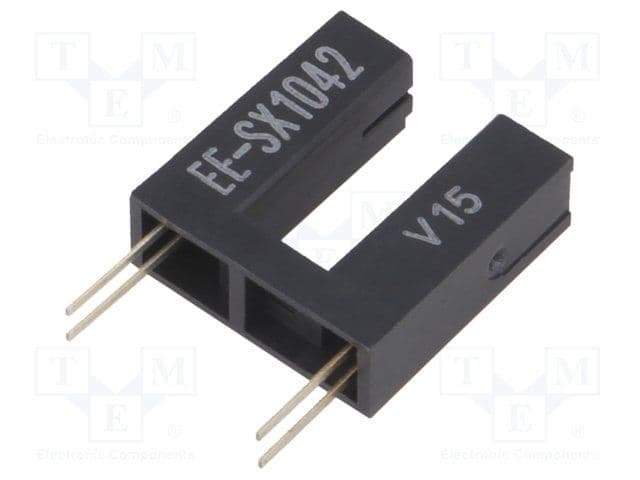

Transmissive photointerrupter with a 5mm sensing distance. Features a phototransistor output configuration and an open collector output type. Maximum collector current is 20mA with a maximum power dissipation of 100mW. Operating temperature range is -25°C to 85°C. Mounting is through-hole for PCB termination. Includes a 940nm wavelength emitter.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX1042 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Fall Time | 4000ns |
| Forward Current | 50mA |
| Height | 14.5mm |
| Input Current | 30mA |
| Lead Free | Lead Free |
| Length | 14mm |
| Max Collector Current | 20mA |
| Max Input Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 200 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 4us |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Termination | PCB |
| DC Rated Voltage | 30V |
| Wavelength | 940nm |
| Width | 5mm |
| RoHS | Compliant |
