Transmissive photointerrupter with a 3.4mm sensing distance and 940nm wavelength. Features a phototransistor output with open collector configuration, rated for 30V collector-emitter breakdown voltage and 20mA max collector current. Operates within a -25°C to 85°C temperature range, with a 4µs response time and 100mW power dissipation. This RoHS compliant component is designed for through-hole PCB mounting and comes in a DIP package.
PackageDIP
Current Rating20mA
MountingThrough Hole, PCB
Power100mW
Quick Jump:
Technical Specifications
Omron EE-SX1071 technical specifications.
General
| Package/Case | DIP |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Current Rating | 20mA |
| Fall Time | 4us |
| Forward Current | 50mA |
| Input Current | 50mA |
| Lead Free | Lead Free |
| Max Collector Current | 20mA |
| Max Input Current | 30mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Output Current | 20mA |
| Max Output Voltage | 10V |
| Max Power Dissipation | 100mW |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output | TRANSISTOR |
| Output Configuration | Phototransistor |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | No |
| Response Time | 4us |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | Yes |
| Sensing Distance | 3.4mm |
| Termination | Solder |
| DC Rated Voltage | 30V |
| Wavelength | 940nm |
| Width | 6.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SX1071 Datasheet
Download the complete datasheet for Omron EE-SX1071 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

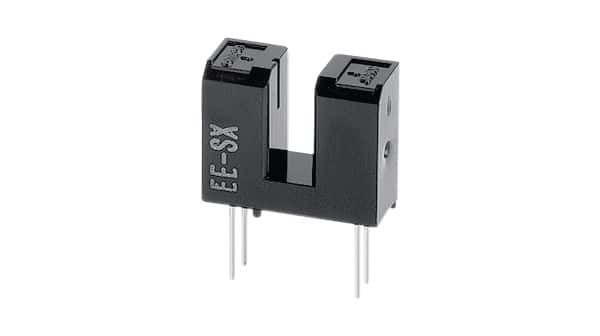

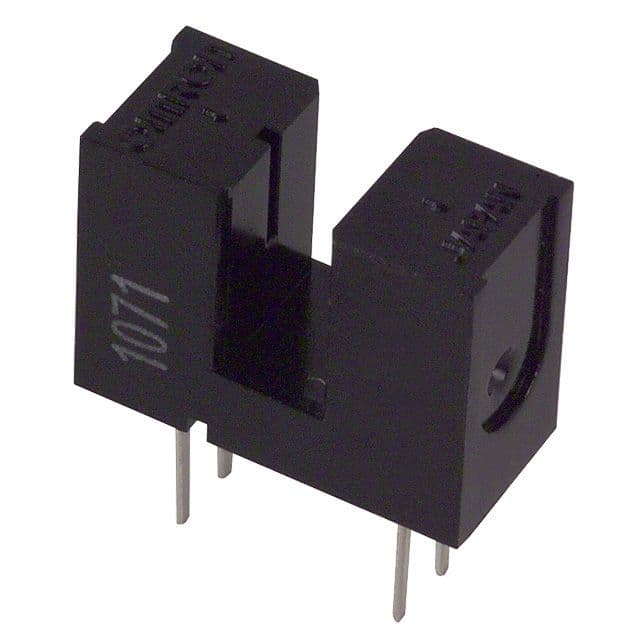

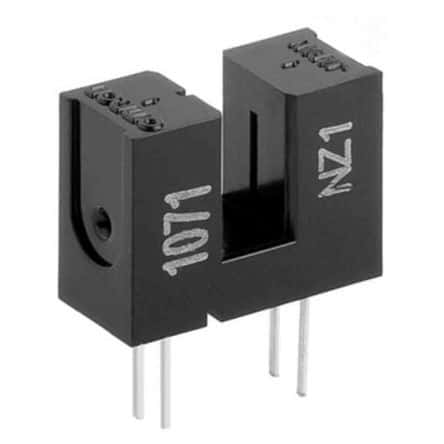

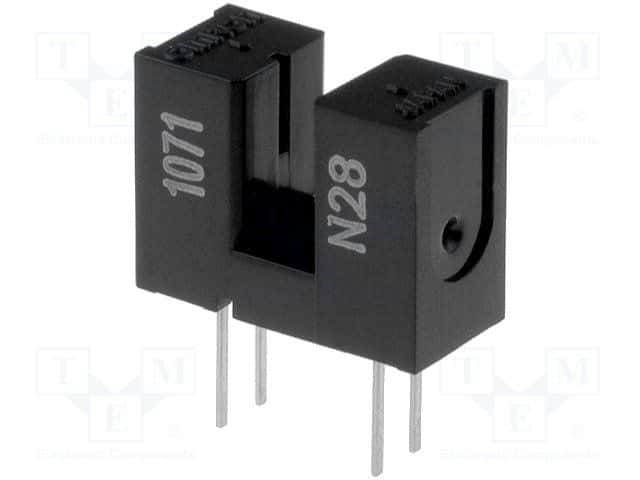

Product Images
