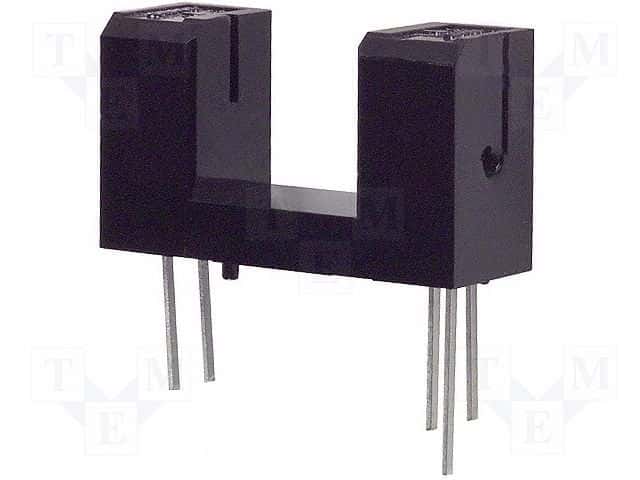

Transmissive photointerrupter with a 5mm slot width, featuring a Photologic output and open collector configuration. This component operates with a maximum collector emitter voltage of 28V and a forward current of 50mA, offering a response time of 20µs. Designed for through-hole mounting, it has a power dissipation of 250mW and a maximum operating temperature of 75°C. The device is RoHS compliant and utilizes a 940nm wavelength.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX3081 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron EE-SX3081 technical specifications.
| Collector Emitter Voltage (VCEO) | 28V |
| Fall Time | 20us |
| Forward Current | 50mA |
| Height | 10mm |
| Lead Free | Lead Free |
| Length | 13.7mm |
| Low Level Output Current | 16mA |
| Max Collector Current | 16mA |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 16mA |
| Mount | Through Hole |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 3.2mA |
| Output Configuration | NPN - Open Collector |
| Packaging | Bulk |
| Power Dissipation | 250mW |
| Reach SVHC Compliant | Unknown |
| Response Time | 20us |
| Reverse Breakdown Voltage | 4V |
| Reverse Voltage (DC) | 4V |
| RoHS Compliant | Yes |
| Wavelength | 940nm |
| Width | 5mm |
| RoHS | Compliant |
