The EE-SX670P-WR1M is a phototransistor from Omron with a PNP open collector output configuration. It operates within a temperature range of -25°C to 55°C and has a response time of 1ms. The device is RoHS compliant and has a sensing distance of 5mm. It is available in a bulk packaging and has a package quantity of 1. The phototransistor is designed for chassis mount applications.
MountingChassis Mount
Quick Jump:
Technical Specifications
Omron EE-SX670P-WR1M technical specifications.
General
| Forward Current | 30mA |
| Max Collector Current | 50mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Mount | Chassis Mount |
| Number of Channels | 1 |
| Operating Supply Current | 30mA |
| Output Configuration | PNP - Open Collector |
| Output Type | Phototransistor |
| Package Quantity | 1 |
| Packaging | Bulk |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Wavelength | 940nm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SX670P-WR1M Datasheet
Download the complete datasheet for Omron EE-SX670P-WR1M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

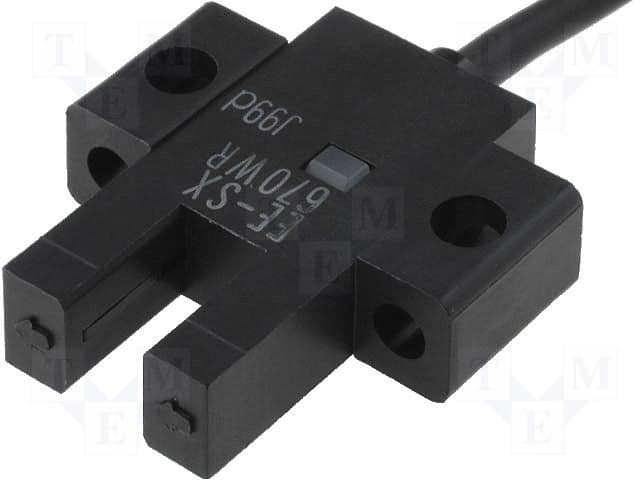

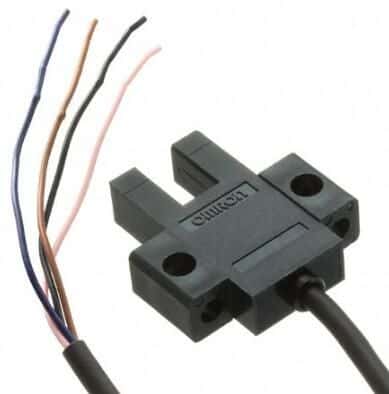

Product Images
