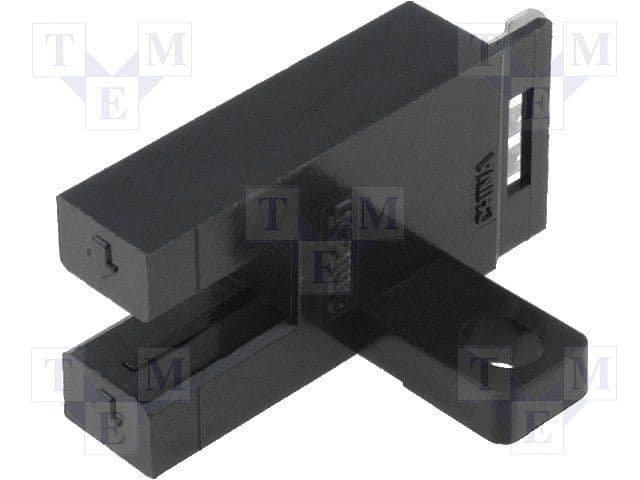

The Omron EE-SX672R is a general-purpose optical sensor with a phototransistor output configuration and a PNP output type. It operates within a temperature range of -25°C to 55°C and has a maximum supply voltage of 24V and minimum supply voltage of 5V. The sensor has a response time of 1ms and is RoHS compliant. It is available in a bulk packaging configuration and is suitable for use in applications where a dark-on output is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX672R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Lead Free | Contains Lead |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Connector, Chassis Mount, Panel |
| Number of Channels | 1 |
| Operating Supply Current | 12mA |
| Output Configuration | Dark-On |
| Output Type | Phototransistor, PNP |
| Package Quantity | 1 |
| Packaging | Bulk |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 0.197inch |
| Wavelength | 940nm |
| RoHS | Compliant |
