Technical Specifications
Omron EE-SX673R technical specifications.
General
Height
26mm
Lead Free
Contains Lead
Length
13.4mm
Max Collector Current
100mA
Max Operating Temperature
55°C
Min Operating Temperature
-25°C
Max Supply Voltage (DC)
24V
Min Supply Voltage (DC)
5V
Mount
Connector, Chassis Mount
Number of Channels
1
Operating Supply Current
12mA
Output Configuration
Dark-On
Output Type
Phototransistor, PNP
Package Quantity
1
Ratings
IP50
Response Time
1ms
RoHS Compliant
Yes
Sensing Distance
0.197inch
Termination
Connector
Wavelength
940nm
Width
12.8mm
Compliance
RoHS
Compliant
Datasheet
Omron EE-SX673R Datasheet
Download the complete datasheet for Omron EE-SX673R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

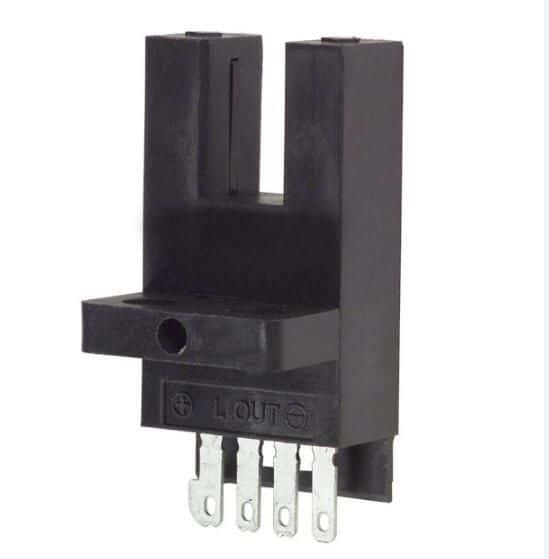

Product Images
