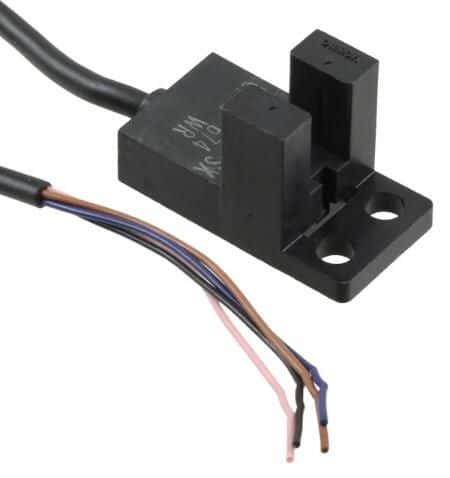

Slot-type optical sensor with a 5mm sensing distance. Features a PNP open collector output configuration and a phototransistor output type. Operates with a supply voltage range of 5V to 24V DC and a maximum collector current of 100mA. This component offers a 1ms response time and is rated IP50. Dimensions include 13.6mm length, 13mm width, and 25.3mm height, with PCB termination and chassis/panel mounting options. Operating temperature range is -25°C to 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX674R datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Height | 25.3mm |
| Lead Free | Lead Free |
| Length | 13.6mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Chassis Mount, Panel |
| Number of Channels | 1 |
| Operating Supply Current | 12mA |
| Output Configuration | PNP - Open Collector |
| Output Current | 50mA |
| Output Type | Phototransistor, PNP |
| Package Quantity | 1 |
| Ratings | IP50 |
| Response Time | 1ms |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Termination | PCB |
| Wavelength | 940nm |
| Width | 13mm |
| RoHS | Compliant |
