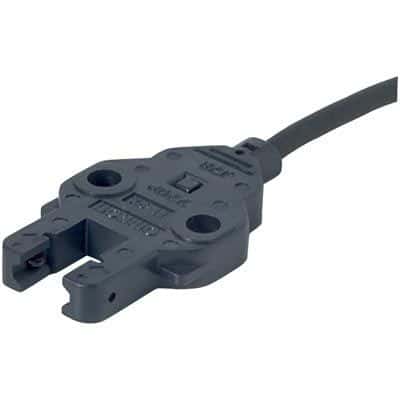

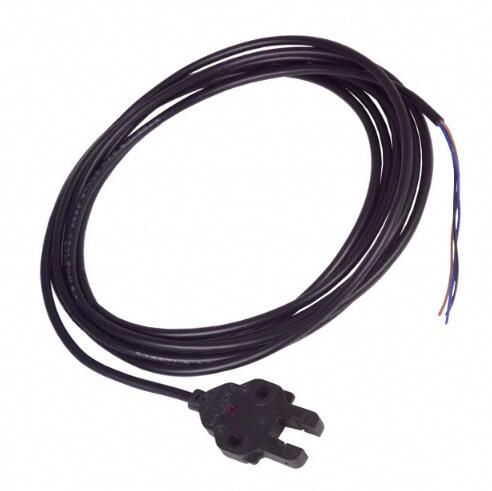

Through-beam photoelectric sensor with NPN open-collector output, featuring a 5mm sensing distance and 940nm infrared touchscreen. Operating voltage range of 5-24VDC with a 35mA operating supply current and 100mA output current. Constructed with a 2m lead length and 3-pin termination, this sensor offers CE and cULus approvals and an IP60 rating. Dimensions include 18mm length, 4.6mm width, and 31.1mm height, with a mounting option for screw or chassis.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX770 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron EE-SX770 technical specifications.
| Approvals | CE, cULus |
| Height | 31.1mm |
| Input Current | 35mA |
| Lead Length | 2m |
| Length | 18mm |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN - Open Collector |
| Output Current | 100mA |
| Output Type | Phototransistor, NPN |
| Output Voltage | 800mV |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP60 |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Termination | PCB |
| Touchscreen | Infrared (IR) |
| Wavelength | 940nm |
| Width | 4.6mm |
| RoHS | Compliant |
