Optical photoelectric sensor featuring an NPN open collector output configuration with a maximum collector current of 100mA. Operates with a supply voltage range of 5V to 24V DC, drawing an operating supply current of 35mA. This sensor utilizes a phototransistor output type and has a sensing distance of 5mm, with an infrared wavelength of 940nm. Designed for chassis mounting via screws, it has dimensions of 18mm length, 13mm width, and 21mm height, and operates within a temperature range of -25°C to 55°C.
MountingScrew, Chassis Mount
Quick Jump:
Technical Specifications
Omron EE-SX771A technical specifications.
General
| Forward Current | 35mA |
| Height | 21mm |
| Lead Free | Contains Lead |
| Length | 18mm |
| Load Current | 100mA |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 35mA |
| Output Configuration | NPN - Open Collector |
| Output Current | 100mA |
| Output Type | Phototransistor, NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Termination | PCB |
| Wavelength | 940nm |
| Width | 13mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SX771A Datasheet
Download the complete datasheet for Omron EE-SX771A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

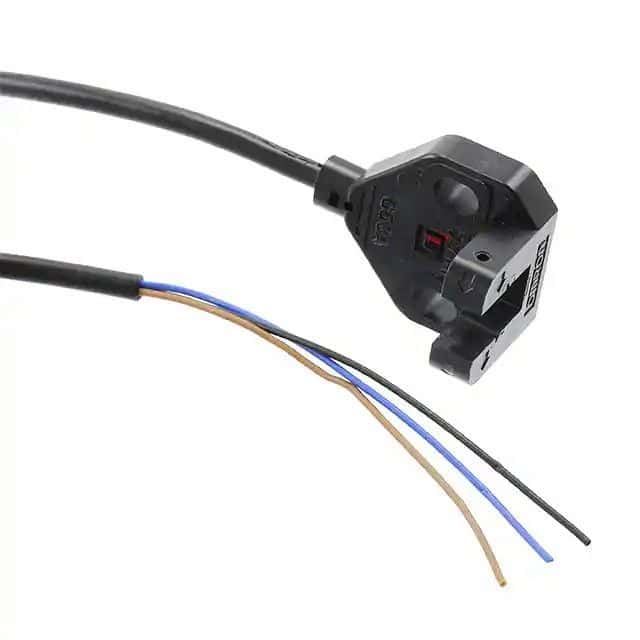

Product Images
