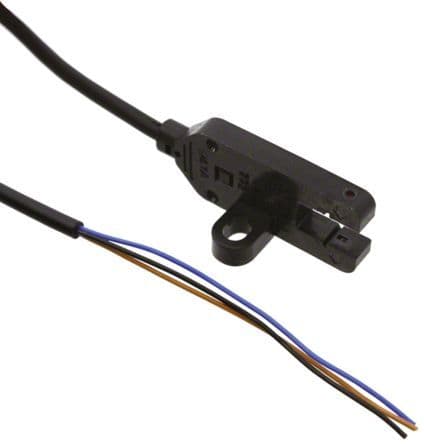

The Omron EE-SX772A is a phototransistor with an NPN output configuration and open collector output type. It has a maximum collector current of 100mA and can operate at a maximum supply voltage of 24V. The device is rated for an operating temperature range of -25°C to 55°C and is RoHS compliant. It features a sensing distance of 5mm and uses an optical sensing method with a wavelength of 940nm. The EE-SX772A is packaged in bulk and is suitable for screw or chassis mount applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX772A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Forward Current | 35mA |
| Height | 31.1mm |
| Lead Free | Contains Lead |
| Length | 19.1mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 35mA |
| Output Configuration | NPN - Open Collector |
| Output Current | 100mA |
| Output Type | Phototransistor, NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP60 |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Termination | Cable |
| Wavelength | 940nm |
| Width | 12.3mm |
| RoHS | Compliant |
