Optical sensor featuring a 5mm sensing distance and NPN open collector output configuration. This phototransistor sensor operates with a supply voltage range of 5V to 24V, drawing 35mA at a forward current of 35mA. It boasts a maximum collector current of 100mA and an operating temperature range from -25°C to 55°C. Designed for chassis mounting via screws, this RoHS compliant component utilizes a 940nm wavelength for its optical sensing method.
MountingScrew, Chassis Mount
Quick Jump:
Technical Specifications
Omron EE-SX871A technical specifications.
General
| Forward Current | 35mA |
| Height | 21mm |
| Lead Free | Lead Free |
| Length | 18mm |
| Max Collector Current | 100mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Operating Supply Current | 35mA |
| Output Configuration | NPN - Open Collector |
| Output Current | 100mA |
| Output Type | Phototransistor, NPN |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP60 |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Wavelength | 940nm |
| Width | 13mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SX871A Datasheet
Download the complete datasheet for Omron EE-SX871A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

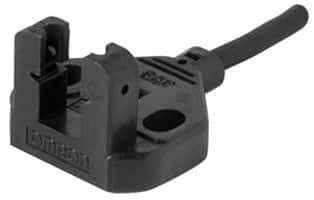

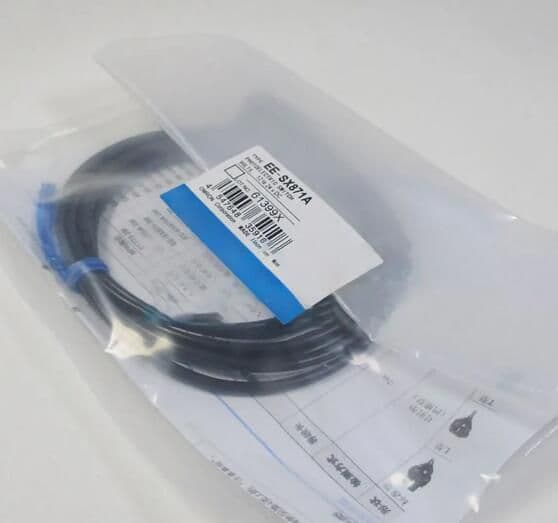

Product Images
