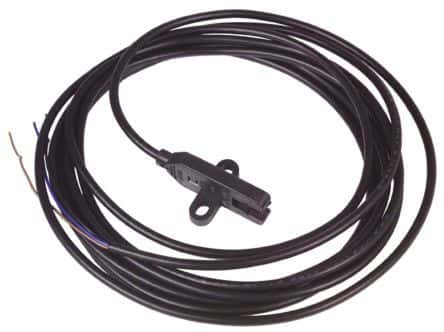

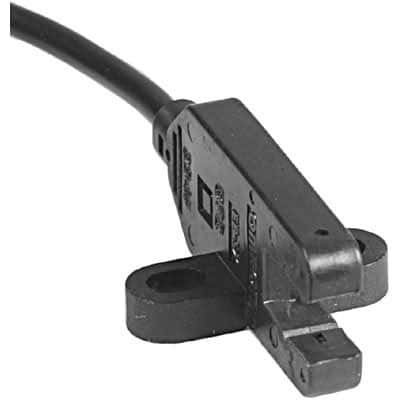

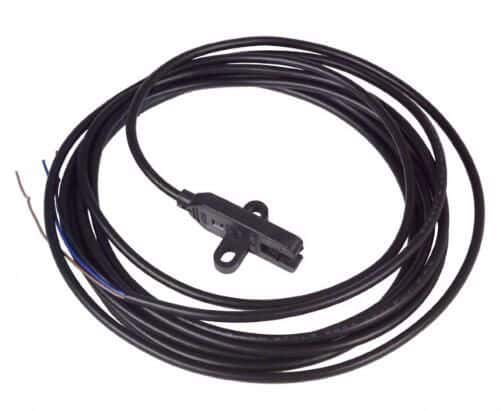

Transmissive optical sensor with NPN open collector output, featuring a 5mm sensing distance and 940nm infrared touchscreen. Operating voltage range is 5V to 24V DC with a maximum collector current of 35mA and output current of 100mA. Unit dimensions are 19.1mm length, 12.3mm width, and 31.1mm height, with a 2m lead length. Mounting options include screw and chassis mount, with IP60 rating and CE, cULus approvals. Operating temperature range is -25°C to 55°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SX872 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron EE-SX872 technical specifications.
| Approvals | CE, cULus |
| Height | 31.1mm |
| Input Current | 35mA |
| Lead Free | Contains Lead |
| Lead Length | 2m |
| Length | 19.1mm |
| Max Collector Current | 35mA |
| Max Input Current | 35mA |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 24V |
| Min Supply Voltage (DC) | 5V |
| Max Supply Voltage | 24V |
| Min Supply Voltage | 5V |
| Mount | Screw, Chassis Mount |
| Number of Channels | 1 |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 24V |
| Output Configuration | NPN - Open Collector |
| Output Current | 100mA |
| Output Type | Phototransistor, NPN |
| Output Voltage | 800mV |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | IP60 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sensing Distance | 5mm |
| Sensing Method | Optical |
| Touchscreen | Infrared (IR) |
| Wavelength | 940nm |
| Width | 12.3mm |
| RoHS | Compliant |
