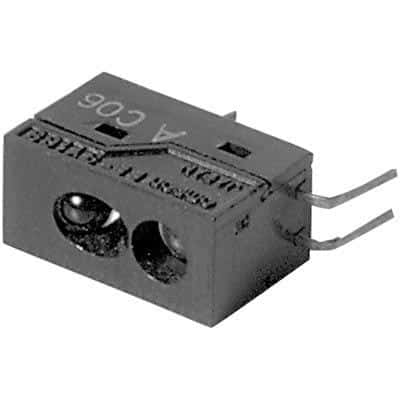

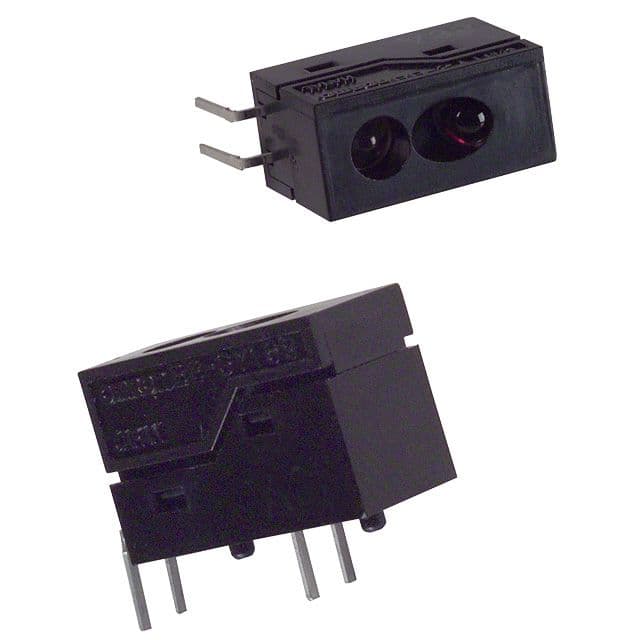

Reflective photointerrupter featuring a phototransistor output. This 4-pin component offers a 4mm sensing distance with a 660nm wavelength. Key electrical specifications include a 30V collector-emitter breakdown voltage and a 40mA forward current. Designed for through-hole PCB mounting, it operates within a 0°C to 70°C temperature range and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron EE-SY169 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron EE-SY169 technical specifications.
| Approvals | UL |
| Body Material | ABS |
| Collector Emitter Breakdown Voltage | 30V |
| Collector Emitter Voltage (VCEO) | 30V |
| Collector-emitter Voltage-Max | 30V |
| Depth | 6mm |
| Fall Time | 30us |
| Forward Current | 40mA |
| Height | 8mm |
| Input Current | 20mA |
| Lead Free | Lead Free |
| Length | 12.5mm |
| Max Collector Current | 20mA |
| Max Input Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Type | Phototransistor |
| Output Voltage | 30V |
| Package Quantity | 100 |
| Packaging | Bulk |
| Power Dissipation | 100mW |
| Reach SVHC Compliant | Unknown |
| Response Time | 30us |
| Reverse Breakdown Voltage | 3V |
| Reverse Voltage | 3V |
| Reverse Voltage (DC) | 3V |
| RoHS Compliant | Yes |
| Sensing Distance | 4mm |
| Termination | Solder |
| Touchscreen | Infrared (IR) |
| Wavelength | 660nm |
| RoHS | Compliant |
