Surface mount reflective photointerrupter featuring a phototransistor output. This 4-pin SMD component operates with a 35V collector-emitter breakdown voltage and a maximum collector current of 20mA. It offers a sensing distance of 1mm and a response time of 20µs, with a forward current of 50mA. The device is housed in a 3.2mm x 1.7mm x 1.1mm SMD package, suitable for PCB mounting, and operates within a temperature range of -25°C to 85°C.
PackageSMD/SMT
MountingSurface Mount, PCB
Power100mW
Quick Jump:
Technical Specifications
Omron EE-SY199 technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | SMD/SMT |
| Collector Emitter Breakdown Voltage | 35V |
| Collector Emitter Voltage (VCEO) | 35V |
| Collector-emitter Voltage-Max | 35V |
| Depth | 1.7mm |
| Fall Time | 20000ns |
| Forward Current | 50mA |
| Height | 1.1mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Breakdown Voltage | 35V |
| Max Collector Current | 20mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Max Supply Voltage (DC) | 1.4V |
| Mount | Surface Mount, PCB |
| Number of Elements | 1 |
| Output Configuration | Phototransistor |
| Output Current | 20mA |
| Output Type | Phototransistor |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Power Dissipation | 100mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Response Time | 20us |
| Reverse Breakdown Voltage | 6V |
| Reverse Voltage | 6V |
| RoHS Compliant | Yes |
| Sensing Distance | 1mm |
| Wavelength | 950nm |
Compliance
| RoHS | Compliant |
Datasheet
Omron EE-SY199 Datasheet
Download the complete datasheet for Omron EE-SY199 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

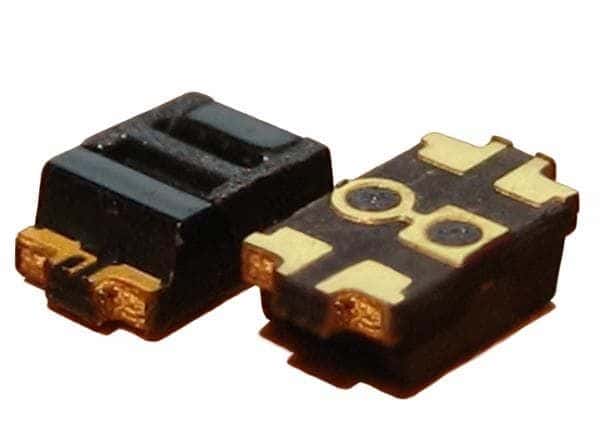

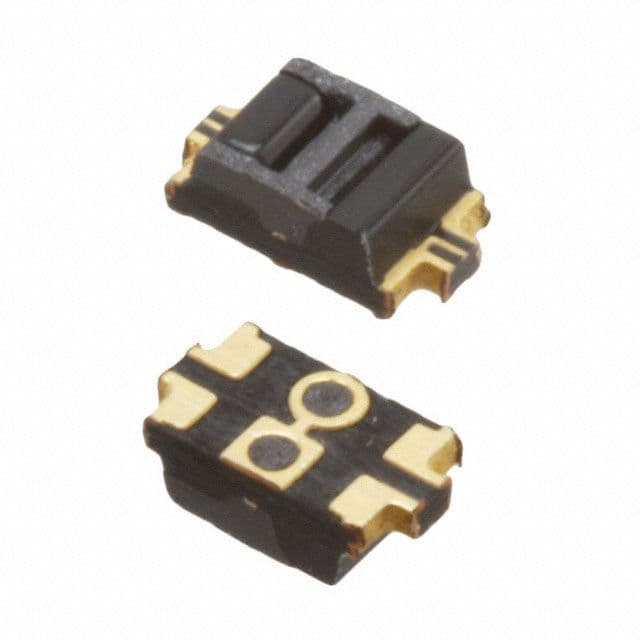

Product Images
