SPDT power relay featuring a 24V DC non-latching coil with 21.8mA current and 530mW power consumption. Offers a 16A contact current rating with silver contact material, suitable for AC voltages up to 380V and DC voltages up to 125V. Designed for through-hole mounting with PC pin termination, this general-purpose relay operates within a temperature range of -40°C to 70°C, with operate and release times of 15ms and 5ms respectively.
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G2R-1-E-T130-DC24 technical specifications.
General
| Coil Current | 21.8mA |
| Coil Power | 530mW |
| Coil Resistance | 1.1kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 16A |
| Contact Material | Silver |
| Lead Free | Lead Free |
| Max Current Rating | 16A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G2R |
| Termination | PC Pin |
| Throw Configuration | SPDT |
| Weight | 17g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-1-E-T130-DC24 Datasheet
Download the complete datasheet for Omron G2R-1-E-T130-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

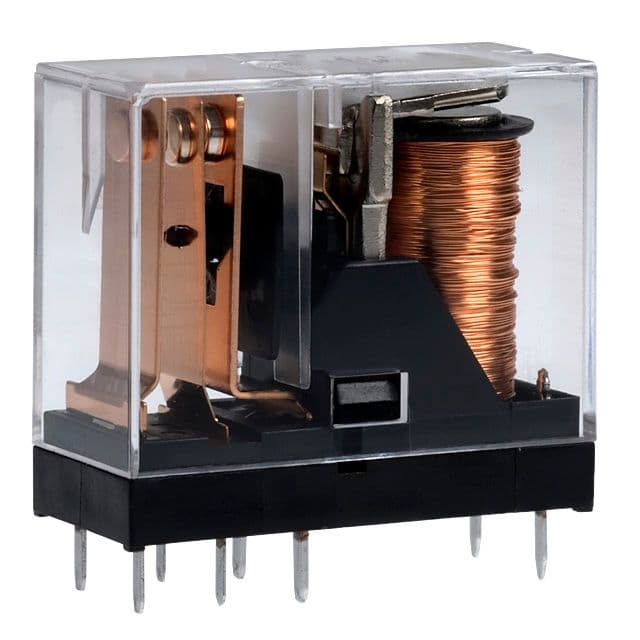

Product Images
