General purpose power relay featuring a Single Pole Double Throw (SPDT) contact configuration. Rated for 10A switching current and 440VAC/125VDC maximum voltage. Operates with a 24VDC coil voltage, drawing 21.6mA with 1.113kR coil resistance and 53mW power consumption. Offers a 15ms operate time and is socket mountable with quick connect termination. Approvals include UL, CSA, VDE, and CE, with RoHS compliance.
Package125
Current Rating10A
MountingSocket, Plug-In
Power53mW
Quick Jump:
Technical Specifications
Omron G2R-1-S-DC24(S) technical specifications.
General
| Approvals | UL, CSA, VDE, CE |
| Package/Case | 125 |
| Coil Current | 21.6mA |
| Coil Resistance | 1.113kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 10A |
| Contact Material | Silver, Cadmium, Tin |
| Current Rating | 10A |
| Depth | 13mm |
| Height | 35.5mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 440V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socket, Plug-In |
| Mounting Style | SOCKET |
| Operate Time | 15ms |
| Power Consumption | 53mW |
| Ratings | IP40 |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Switching Current | 10A |
| Termination | Quick Connect |
| Throw Configuration | SPDT |
| Turn-On Delay Time | 15ms |
| Voltage Rating (AC) | 440V |
| Width | 13mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-1-S-DC24(S) Datasheet
Download the complete datasheet for Omron G2R-1-S-DC24(S) to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

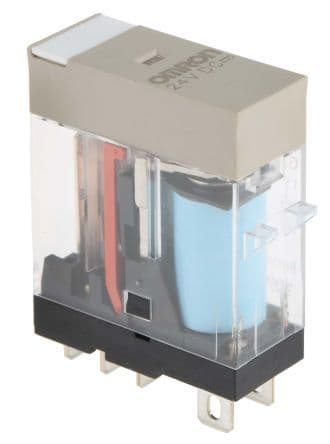

Product Images
