General purpose power relay with SPST contact configuration, rated for 16A switching current and 380VAC / 125VDC maximum voltage. Features a 24VDC non-latching coil with 21.8mA current and 1.1kΩ resistance, consuming 530mW. Operates within a -40°C to 70°C temperature range with 15ms operate and 5ms release times. Through-hole mounting with PC pin termination, IP40 rated, and RoHS compliant.
MountingThrough Hole
Power530mW
Quick Jump:
Technical Specifications
Omron G2R-1A-E-DC24 technical specifications.
General
Approvals
UL, CSA, VDE, CE
Coil Current
21.8mA
Coil Resistance
1.1kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
16A
Contact Material
Silver
Depth
13mm
Height
25.5mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
16A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Packaging
Tray
Power Consumption
530mW
Radiation Hardening
No
Ratings
IP40
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G2R
Switching Current
16A
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
380V
DC Rated Voltage
125V
Weight
17g
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Omron G2R-1A-E-DC24 Datasheet
Download the complete datasheet for Omron G2R-1A-E-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

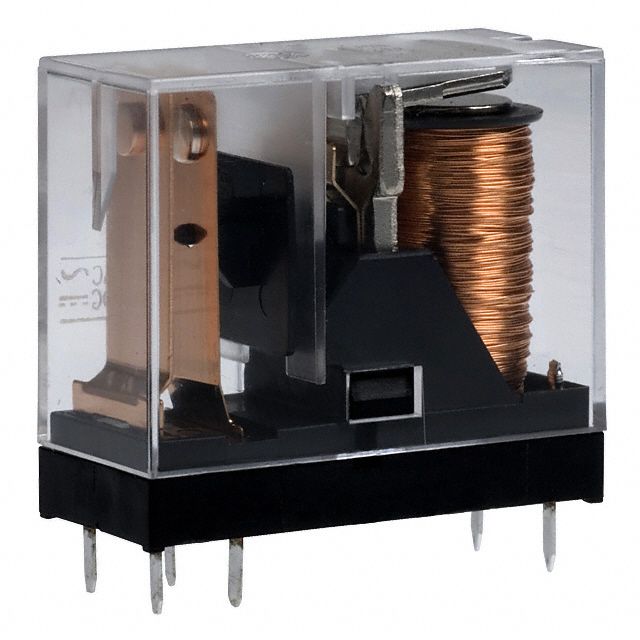

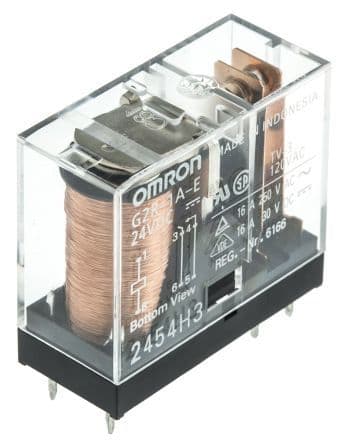

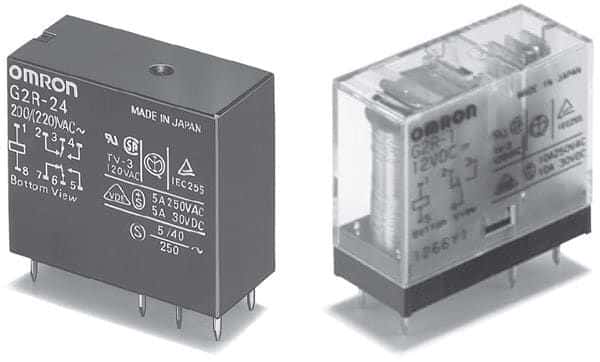

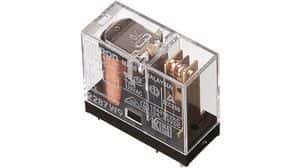

Product Images
