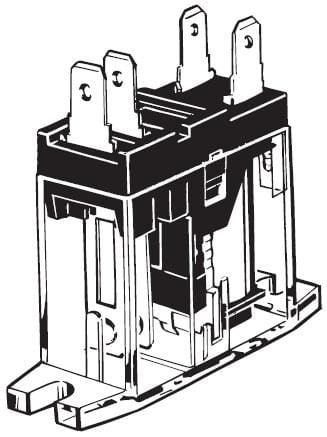

General purpose power relay, G2R series, featuring a 12VDC non-latching coil with 43.6mA coil current and 275 Ohm coil resistance. This SPST-NO relay offers a 10A contact current rating with silver contact material and a maximum AC voltage rating of 380V, and DC voltage rating of 125V. Operate time is 15ms with a 5ms release time, and it operates within a temperature range of -40°C to 70°C. Mounting options include flanges, chassis, panel, and brackets, with quick connect termination. This RoHS compliant component has a power consumption of 530mW and is lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G2R-1A-T DC12 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Omron G2R-1A-T DC12 technical specifications.
| Approvals | UL, CSA, VDE, CE |
| Coil Current | 43.6mA |
| Coil Resistance | 275R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Current Rating | 10A |
| Depth | 14mm |
| Height | 29.5mm |
| Lead Free | Lead Free |
| Length | 45mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Flanges, Chassis Mount, Panel, Brackets |
| Operate Time | 15ms |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Consumption | 530mW |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G2R |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| Width | 14mm |
| RoHS | Compliant |
