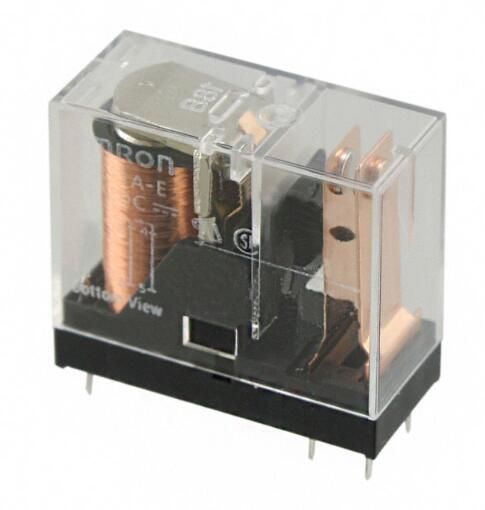

The Omron G2R-1A-TDC6 is a general purpose electromechanical relay with a silver contact material and a non-latching coil type. It has a contact current rating of 10A and can operate at temperatures between -40°C and 70°C. The relay is mounted via flanges and chassis mount, and is packaged in a tray with one unit per package. It is compliant with RoHS regulations and has a power consumption of 530mW.
Checking distributor stock and pricing after the page loads.
| Coil Current | 88.2mA |
| Coil Power | 530mW |
| Coil Resistance | 68R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 6V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Height | 29.5mm |
| Length | 45mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Flanges, Chassis Mount |
| Operate Time | 15ms |
| Package Quantity | 1 |
| Packaging | Tray |
| Power Consumption | 530mW |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | G2R |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Width | 14mm |
| RoHS | Compliant |
