Technical Specifications
Omron G2R-1A-TV8-ASIDC12 technical specifications.
General
Coil Current
43.6mA
Coil Power
530mW
Coil Resistance
275R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
10A
Contact Material
Tin, Silver
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Tray
Relay Type
General Purpose
Release Time
5ms
Series
G2R
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Omron G2R-1A-TV8-ASIDC12 Datasheet
Download the complete datasheet for Omron G2R-1A-TV8-ASIDC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

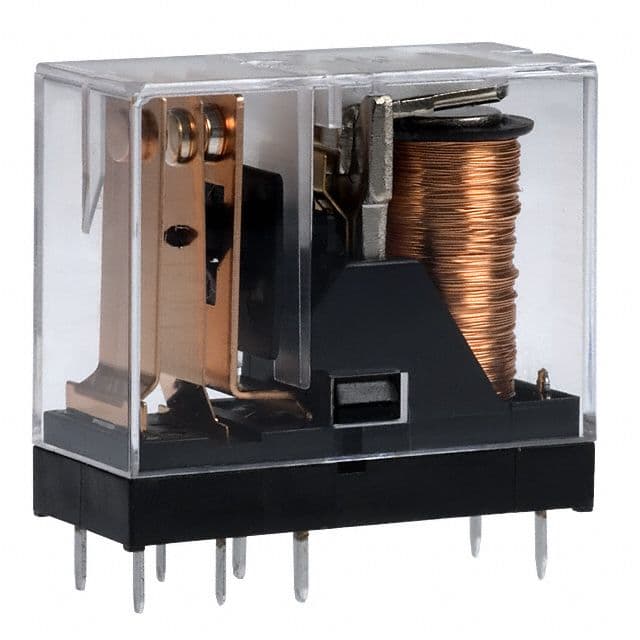

Product Images
