General purpose power relay featuring a 120V AC non-latching coil with 7.5mA coil current and 6.5kΩ resistance. Offers a 10A contact current rating with silver contacts and a 380V AC / 125V DC maximum voltage rating. This through-hole mount relay has a SPST throw configuration, 15ms operate time, and 10ms release time. Operating temperature range is -40°C to 70°C.
MountingThrough Hole
Power900mW
Quick Jump:
Technical Specifications
Omron G2R-1A4-AC120 technical specifications.
General
| Coil Current | 7.5mA |
| Coil Resistance | 6.5kR |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 120V |
| Contact Current Rating | 10A |
| Contact Material | Silver |
| Depth | 13.5mm |
| Height | 25.5mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Packaging | Tray |
| Power Consumption | 900mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | G2R |
| Termination | PC Pin |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 380V |
| Weight | 17g |
| Width | 13.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-1A4-AC120 Datasheet
Download the complete datasheet for Omron G2R-1A4-AC120 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

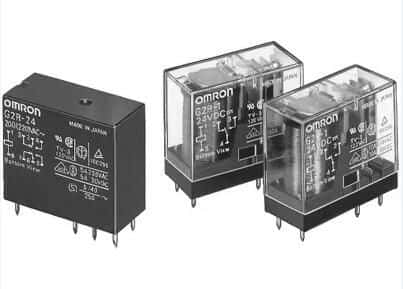

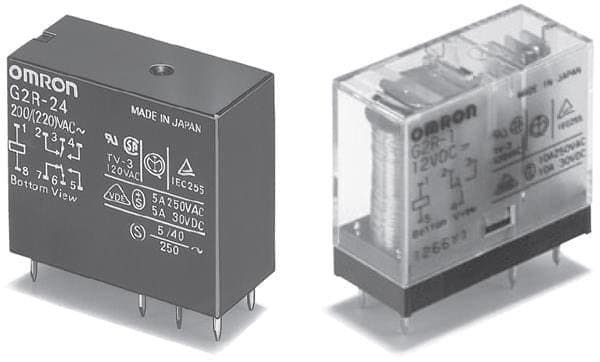

Product Images
