SPST-NO through-hole power relay with a 24VDC coil and 10A contact rating. Features silver contacts, 1.1kΩ coil resistance, and 530mW power consumption. Operates within a -40°C to 70°C temperature range, with AC voltage rating of 380V and DC voltage rating of 125V. Approvals include UL, CSA, VDE, and CE. RoHS compliant and lead-free.
Current Rating10A
MountingThrough Hole, PCB
Power530mW
Quick Jump:
Technical Specifications
Omron G2R-1A4-DC24 technical specifications.
General
Approvals
UL, CSA, VDE, CE
Coil Current
21.8mA
Coil Resistance
1.1kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
13.5mm
Height
25.5mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
10A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole, PCB
Operate Time
15ms
Package Quantity
100
Packaging
Tray
Power Consumption
530mW
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G2R
Termination
PC Pin
Throw Configuration
SPST
Voltage Rating (AC)
380V
Weight
17g
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Omron G2R-1A4-DC24 Datasheet
Download the complete datasheet for Omron G2R-1A4-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

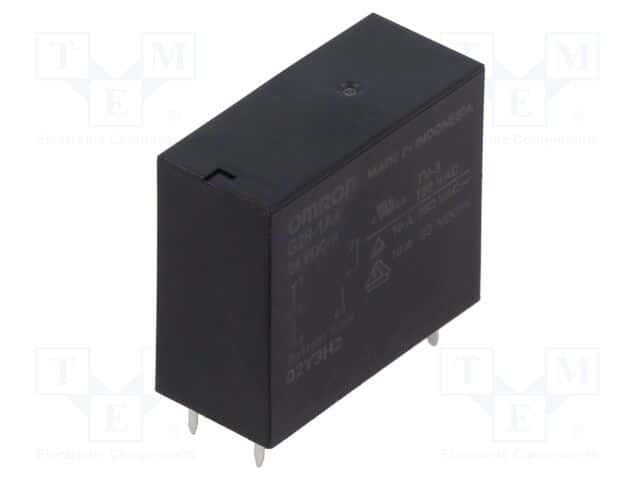

Product Images
