PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G2R-2-AC110 technical specifications.
General
Package/Case
DIP
Coil Current
10.6mA
Coil Resistance
4.6kR
Coil Type
Non-Latching
Coil Voltage (AC)
110V
Contact Current Rating
5A
Contact Material
Silver
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
10ms
RoHS Compliant
Yes
Series
G2R
Termination
PC Pin
Throw Configuration
DPDT
Weight
17g
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2-AC110 Datasheet
Download the complete datasheet for Omron G2R-2-AC110 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

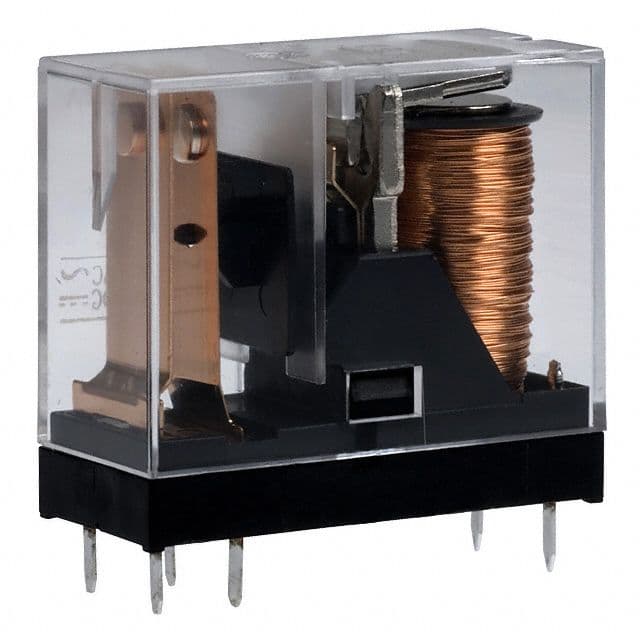

Product Images
