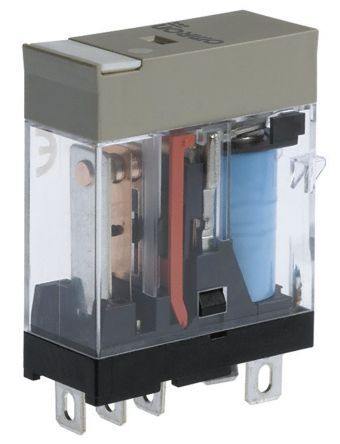

DPDT General Purpose Power Relay featuring a 12VDC non-latching coil with 43.2mA coil current and 530mW coil power. Offers a 5A contact current rating with Silver/Cadmium contact material, suitable for AC loads up to 380V and DC loads up to 125V. Operate and release times are 15ms and 10ms respectively. Socketable mounting with solder termination, this RoHS compliant component operates within a -40°C to 70°C temperature range and holds UL, CSA, VDE, and CE approvals.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Omron G2R-2-S-DC12(S) datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA, VDE, CE |
| Coil Current | 43.2mA |
| Coil Power | 530mW |
| Coil Resistance | 278R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 12V |
| Contact Current Rating | 5A |
| Contact Material | Silver, Cadmium |
| Current Rating | 5A |
| Depth | 13mm |
| Height | 35.5mm |
| Lead Free | Lead Free |
| Length | 29mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Socketable, Socket, Plug-In |
| Operate Time | 15ms |
| Package Quantity | 1 |
| Power Consumption | 530mW |
| Reach SVHC Compliant | Unknown |
| Relay Type | General Purpose |
| Release Time | 10ms |
| RoHS Compliant | Yes |
| Series | G2RS |
| Termination | Solder |
| Throw Configuration | DPDT |
| Turn-On Delay Time | 15ms |
| Voltage Rating (AC) | 380V |
| Width | 13mm |
| RoHS | Compliant |
