Technical Specifications
Omron G2R-2-T130-WR-DC24 technical specifications.
General
Coil Current
21.8mA
Coil Power
530mW
Coil Resistance
1.1kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
5A
Contact Material
Silver
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
5ms
Series
G2R
Termination
PC Pin
Throw Configuration
DPDT
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2-T130-WR-DC24 Datasheet
Download the complete datasheet for Omron G2R-2-T130-WR-DC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

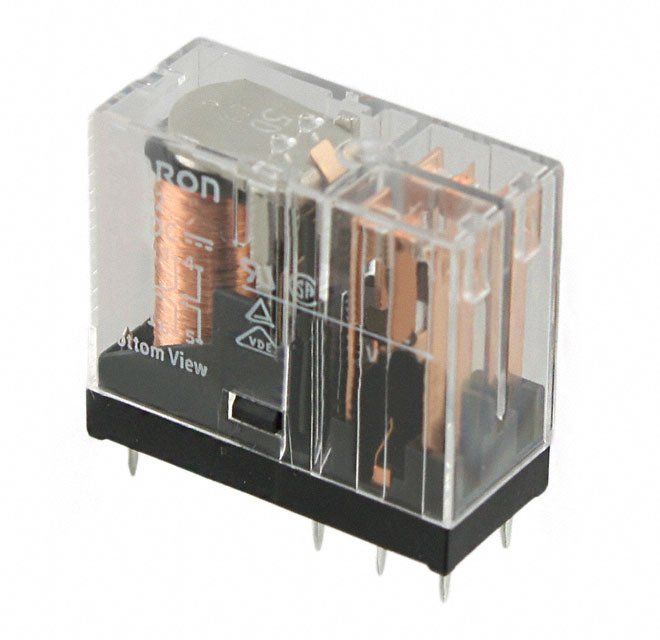

Product Images
