Technical Specifications
Omron G2R-2110AC technical specifications.
General
Application(s)
POWER
Coil Current
10.6mA
Coil Power
530mW
Coil Resistance
4.6kR
Coil Type
Non-Latching
Coil Voltage (AC)
110V
Contact Current Rating
5A
Contact Material
Silver
Depth
13mm
Height
25.5mm
Length
29mm
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
PCB
Operate Time
15ms
Radiation Hardening
No
Ratings
IP54
Reach SVHC Compliant
Unknown
Switching Current
5A
Termination
PC Pin
Throw Configuration
DPDT
Voltage Rating (AC)
380V
DC Rated Voltage
125V
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2110AC Datasheet
Download the complete datasheet for Omron G2R-2110AC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

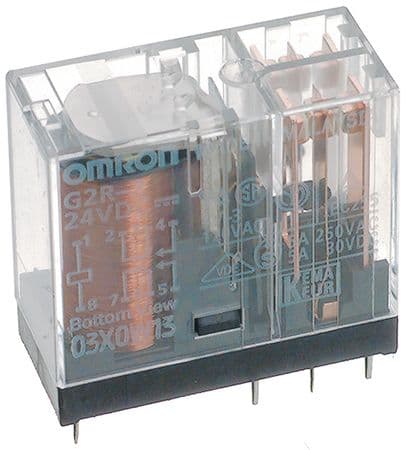

Product Images
