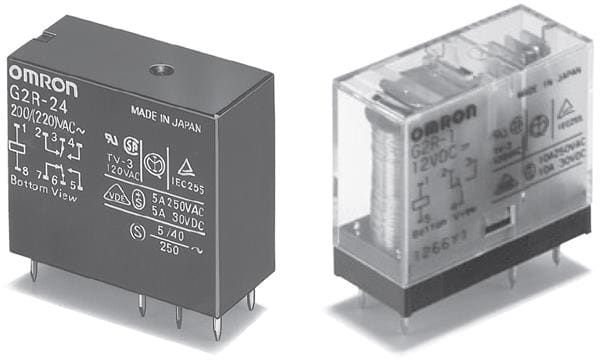

DPDT power relay with a 3A contact current rating and Silver contacts. Features a 24V DC non-latching coil with 15mA coil current, 360mW coil power, and 1.6kΩ coil resistance. Operates within a -40°C to 70°C temperature range, offering 15ms operate time and 5ms release time. Through-hole mount DIP package with PC pin termination, rated for 380V AC and 125V DC. RoHS compliant and lead-free.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Omron G2R-24-H-DC24 technical specifications.
General
Package/Case
DIP
Coil Current
15mA
Coil Power
360mW
Coil Resistance
1.6kR
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
3A
Contact Material
Silver
Height
25.5mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
3A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G2R
Termination
PC Pin
Throw Configuration
DPDT
Weight
17g
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Omron G2R-24-H-DC24 Datasheet
Download the complete datasheet for Omron G2R-24-H-DC24 to view detailed technical specifications.
