DPST general purpose power relay with a 5A contact current rating and silver contact material. Features a 12V DC non-latching coil with 43.6mA coil current and 275R coil resistance, consuming 530mW. Operates within a -40°C to 70°C temperature range, with AC voltage rating up to 380V and DC voltage rating up to 125V. Through-hole mounting with PC pin termination, offering 15ms operate time and 5ms release time.
MountingThrough Hole
Power530mW
Quick Jump:
Technical Specifications
Omron G2R-2A-DC12 technical specifications.
General
Coil Current
43.6mA
Coil Resistance
275R
Coil Type
Non-Latching
Coil Voltage (DC)
12V
Contact Current Rating
5A
Contact Material
Silver
Height
25.5mm
Lead Free
Lead Free
Length
29mm
Max Current Rating
5A
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
380V
Max Voltage Rating (DC)
125V
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Tray
Power Consumption
530mW
Radiation Hardening
No
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G2R
Termination
PC Pin
Throw Configuration
DPST
Weight
17g
Width
13mm
Compliance
RoHS
Compliant
Datasheet
Omron G2R-2A-DC12 Datasheet
Download the complete datasheet for Omron G2R-2A-DC12 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

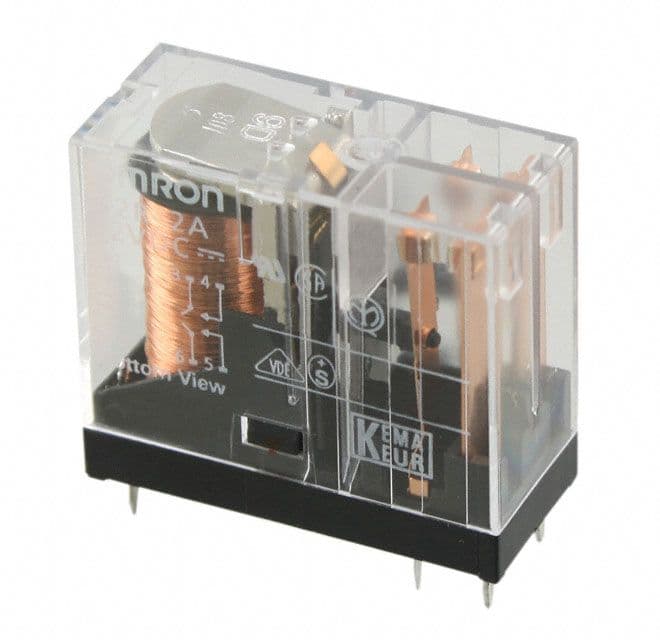

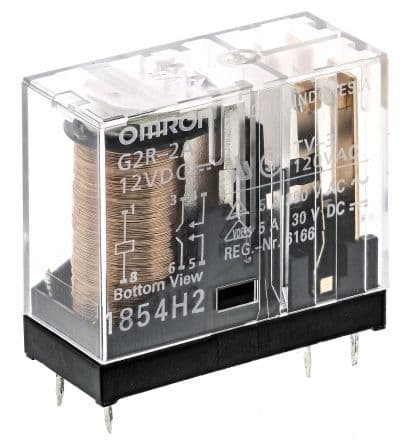

Product Images
