Technical Specifications

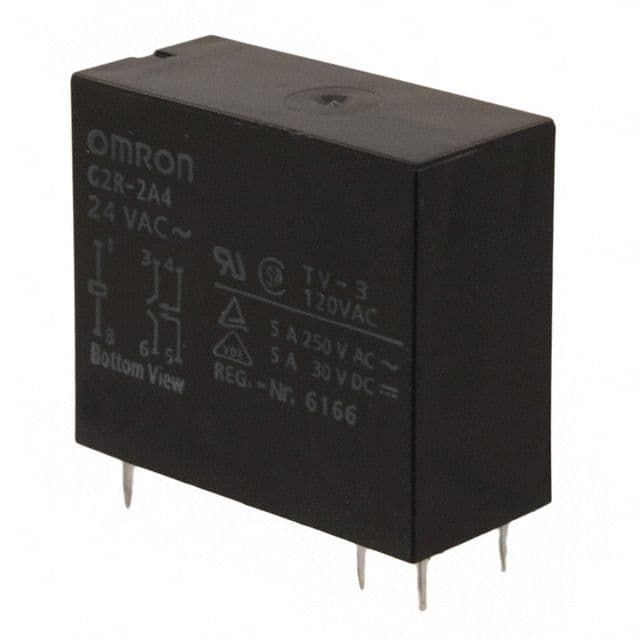

Omron G2R-2A4-AC24 technical specifications.
General
| Package/Case | DIP |
| Coil Current | 37.5mA |
| Coil Resistance | 260R |
| Coil Type | Non-Latching |
| Coil Voltage (AC) | 24V |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Lead Free | Lead Free |
| Max Current Rating | 4A |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 380V |
| Max Voltage Rating (DC) | 125V |
| Mount | Through Hole |
| Operate Time | 15ms |
| Package Quantity | 100 |
| Packaging | Bulk |
| Relay Type | General Purpose |
| Release Time | 10ms |
| Series | G2R |
| Termination | PC Pin |
| Throw Configuration | DPST |
| Weight | 17g |
Compliance
| RoHS | Compliant |
Datasheet
Omron G2R-2A4-AC24 Datasheet
Download the complete datasheet for Omron G2R-2A4-AC24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
