Technical Specifications
Omron G2RG-2A4DC5 technical specifications.
General
Coil Current
160mA
Coil Power
800mW
Coil Resistance
31.3R
Coil Type
Non-Latching
Coil Voltage (DC)
5V
Contact Current Rating
8A
Contact Material
Silver, Tin
Max Operating Temperature
70°C
Min Operating Temperature
-40°C
Mount
Through Hole
Operate Time
15ms
Package Quantity
100
Packaging
Bulk
Relay Type
General Purpose
Release Time
5ms
RoHS Compliant
Yes
Series
G2RG
Termination
PC Pin
Throw Configuration
DPST
Compliance
RoHS
Compliant
Datasheet
Omron G2RG-2A4DC5 Datasheet
Download the complete datasheet for Omron G2RG-2A4DC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

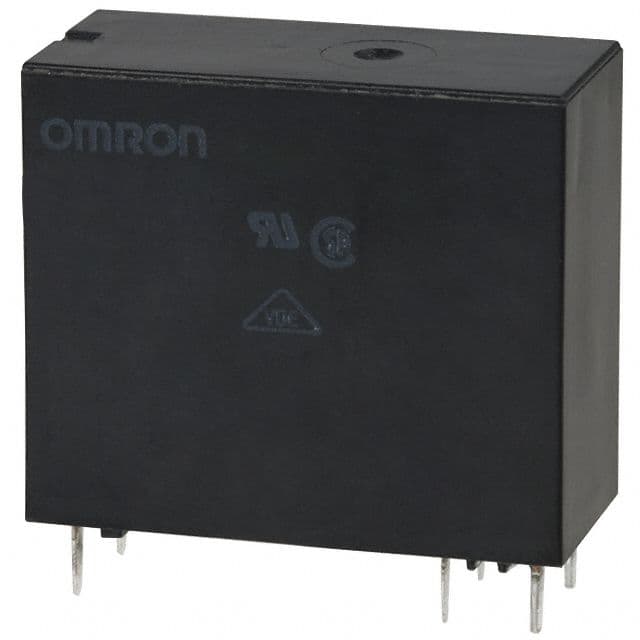

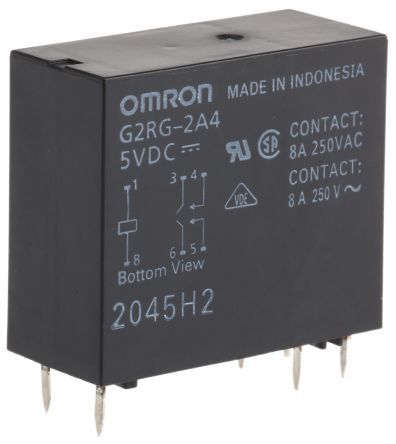

Product Images
